Aice Tech Reliable Industry High Precision High Range Temperature Non Contact Type IR Infrared Sensor
Basic Info.
Model NO.
ABSD-01A
Output Signal Type
Analog Type
Production Process
SemiConductor Integrated
Material
Metal
IP Rating
IP65
Certification
CE
Customized
Customized
Protection Level
IP65(NEMA-4)
Storage Temperature
-20~80ºC
Cable Length
1.5m(Standard) Support Customization
Power Supply
24VDC
Maximum Current
50mA
Spectral Range
8~14μm
Optical Resolution
20:1
Ambient Temperature
0~60ºC
Relative Humidity
10-95%(No Condensation)
Output Signal
4~20mA
Temperature Range
0~1000ºC
Response Time
150ms(95%)
Measurement Accuracy
±1% or ±1.5ºC Take L Value
Repeat Accuracy
±0.5% or ±1ºC Take Larger Value
Size
68mm Xφ18mm(Length×diameter)
Transport Package
Cartons
Specification
24*13*6cm 1kg
Trademark
Aice Tech
Origin
China
HS Code
9025191010
Production Capacity
5000000/Pieces
Packaging & Delivery
Package Size
15.00cm * 13.00cm * 7.00cm
Package Gross Weight
10.000kg
Product Description

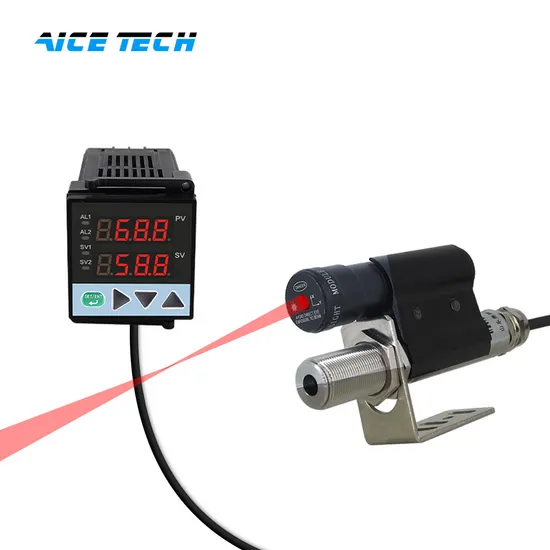

Aice Tech High Range Temperature Non Contact Type IR SensorFeatures:
Non-contact Infrared Temperature Sensor
Easy Measuring Long Distance and Movable Target
Composes with Sensor, Optical System & Cables in a Stainless Steel Shell
IP65 Ambient Temp. 0-60ºC
DC 24V Power, 4-20mA, 0-5V, 0-10V, RS485 & RS232 Output
Spectral Region 8-14µm, Temp. Range -20-300ºC
