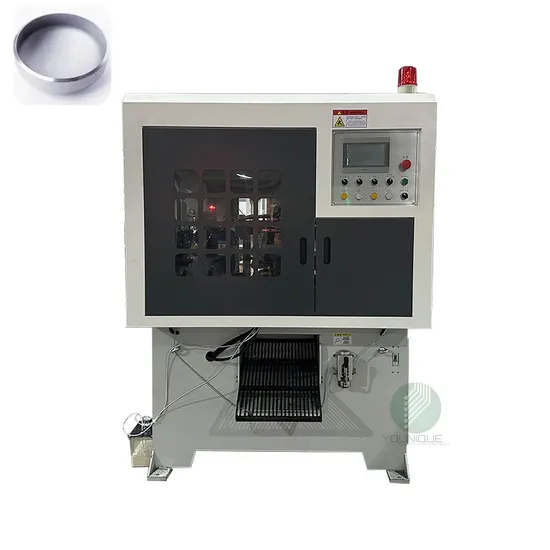

Double Servo Pipe Rods End Processing Deburring Chamfering Machine

Product Description

Product Description
Technical Specification

Feeding method	Clamp straight up and straight down
Processing rang	Pipe tube OD: 5-60mm, Solid rod OD: 5-20mm; Length:35-180mm
Suitable for the shape of the workpiece	Round tube, solid bar material, hexagonal, square pin
Feed	Dual servo feed
Clamp	Pneumatic
Spindle motor	2.2 kW *2
Flat end length tolerance	±0.03mm
Working time	17-23 pcs/min
Machine size	1800*1200*1700 mm
Machine weight	750 kg

Main uses and characteristics of machine tools:
Double head chamfer, simultaneously processing different angles inside and outside.
Play the center hole with outer chamfer. Either turning the inner step, or turning the outer step.
Equipment with blade damage alarm stop turning function, length changes and chamfer sizes are all digitally operated without mechanical adjustment.
Machine parts configuration and origin brand

No	key component	Specifications	Qty.	Power	Brand
1	Main motor	Level 4	2	2.2/3/4	Zhejiang mingsu motor
2	Servo	AC servo	2	400/750W	Suzhou Wistron
3	Touch panel		1		Suzhou Wistron
4	Computer	40	1		Suzhou Wistron
5	Guide rail	35	4		Tanakan
6	Lead screw	2010	2		Taiwang Tbi
7	Bearing	7209	4 pair		Haerbin
8	Pneumatic component				jrl

Main Application
Company Profile
Certifications
Packaging & Shipping
FAQ
Q: How to choose the pipe/tube chamfering machines?
A: You have to inform us following details:
-Pipe Outdiameter Range
-Wall Thickness Range
-The Pipe Material
-Chamfering Angle
-Chamfering Length
-Tube Original Length
-Which Sides Need Do Chamfering
Q: What delivery time for standard machine?
A: Within 35 working days after received advanced payment.
Q: What about your machine warranty?
A: One year warranty after machine reached customer's workshop.
And will responsible for lifetime maintenance
Q: What about delivery terms and payment terms?
A:Delivery terms: 50% deposit, 50% paid before shipment.
FOB Ningbo, ClF your port
Payment Terms: T/T. L/C
Q: How about your service?
A: Before Sales Serive:
1. We will confirm the right model according to the offered pipe inforamtion.
2. Welcome to visit our factory and workshop before you place an order.
After Sales Service:
1. We provide manual,detalled machine installation,commissioning video for operate machine.
2. We provide free installation,commissioning and training at our factory.
if you need engineer go to your factony for machine training, air ickets,food,hotel, localtransportation, engineer's salary should be at your account
3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours
