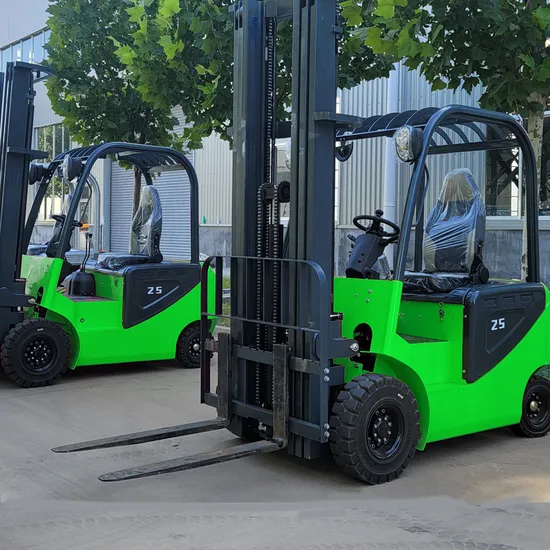

2ton 2000kg 3000kg with Side Shift and Solid Tyres Counterbalance CE Mini Electric Forklift Price

Product Description

High quality CE Euro5 EPA NEW Forklift with good price Lifts 0.5ton to 12ton Product Description

Model	10E	15E	20E
Rated capacity(kg)	1000	1500	2000
Rated lifting height(mm)	3000	3000	3000
Battery	60V/120Ah	60V/140Ah	60V/210Ah
Battery weight(kg)	150	165	300
Total weight(with battery)(kg)	1530	2150	2500
Load center distance(mm)	500	500	500
Performance
Lifting speed,laden/unladen(mm/s)	220/230	200/220	180/200
Lowering speed,laden/unladen(mm/s)	550	550	550
Drive motor(kw)	5	5	5
Lift motor(kw)	4.5	4.5	4.5
Tilt of the mast,F/R(°)	5/10	5/10	5/10
Service brake/parking brake	Hydraulic/Mechanial	Hydraulic/Mechanial	Hydraulic/Mechanial
Size
Wheelbase(mm)	1330	1550	1550
Body size(L*W*H mm)	1980*1020*2017	2230*1096*2030	2230*1096*2030
Fork size(T*W*L mm)	32*100*1070	35*100*1070	40*100*1070
Turning radius(mm)	2050	2200	2280
Groubd clearance under mast(mm)	77	88	88

Model	25E	30E	50E
Rated capacity(kg)	2500	3000	5000
Rated lifting height(mm)	3000	3000	3000
Battery	72V/210Ah	72V/260Ah	80V/500Ah
Battery weight(kg)	360	430	1100
Total weight(with battery)(kg)	3150	4150	7100
Load center distance(mm)	500	500	500
Performance
Lifting speed,laden/unladen(mm/s)	210/250	200/300	250/280
Lowering speed,laden/unladen(mm/s)	450	450	450
Drive motor(kw)	9	9	18
Lift motor(kw)	7.5	9	25
Tilt of the mast,F/R(°)	5/10	5/10	6/12
Service brake/parking brake	Hydraulic/Mechanial	Hydraulic/Mechanial	Hydraulic/Mechanial
Size
Wheelbase(mm)	1600	1850	2040
Body size(L*W*H mm)	2390*1160*2030	2700*1225*2057	2990*1585*2340
Fork size(T*W*L mm)	40*100*1070	45*122*1070	55*150*1070
Turning radius(mm)	2370	2680	2700
Groubd clearance under mast(mm)	88	82	160

Features 1.Mechanical joystick, easy to operate.
2.Thickened mast, strong bearing capacity.
3.Hydraulic power steering wheel, easy to drive.
4.LED light, high brightness, energy saving.
5.Engineering rubber tires, suitable for various road surfaces.
6.Electrophoretic spray paint, smooth and not easy to rust Company Profile
FAQ
Q: How long is the machine warranty time? A: One year. Q: Are you original manufacturer? A: Yes. We are manufacturer of construction machines. Q: What is the terms of payment? A: :Normally, we accept 30% advance, 70% should be paid after finished the machine, L/C at sight. Q: What is the delivery time ? A: Generally we need 3-5 days to produce the machine after prepayment ,if you are urgent , 2 days will be ok ,then send to port. Q: How should we do if the machine broken ? A: You can take a video to us and our technicians will analyze the cause of the problem based on the video. Q: How should we do if parts are broken ? A: We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea or by air. Q: Can the machine use the trademark of our own company? A: Yes ,sir ,of course.
