Product Description

Goat Rabbit Cattle Chicken Catfish Shrimp Pellet Making Machine Fish Feed Extruder Feed Granulator Small Farm Use Chicken Feed Machine for sale Product Description
Introduction:
This feed pellet production line mainly includes raw material crushing, mixing, conveying, pelleting and packaging multi-function in one, advanced design, simple structure, wide applicability, small area, low noise.
The feed production line can process different materials. Corn bran, soybean meal and other grain concentrate and corn stalk, peanut stalk, clover and other raw materials of coarse fiber can be formed at one time or mixed in different proportions.
The feed pellet machine can be equipped with various sizes(from 2.5mm to 8mm) of molds to produce different size pellets, which can be used to various ploutry, such as chicken,pig,cattle,rabbit,etc. Process of poultry animal feed pellet mill line:

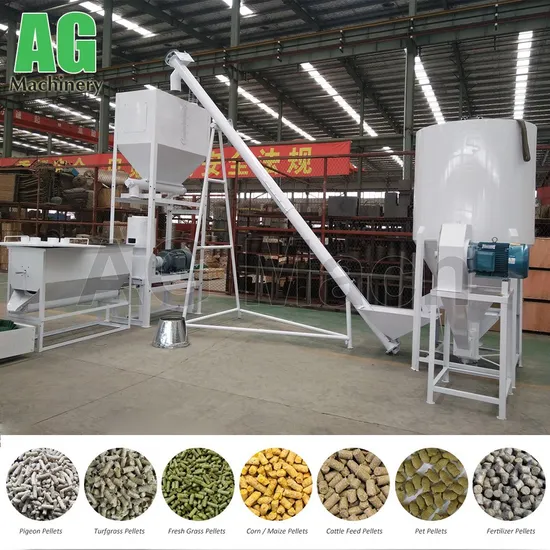

Raw Material - Hammer Mill - Feed Mixer - Screw Conveyor - Feed Pellet Mill - Pellet Cooler
Product Parameters

Technical Parameters of 500KG/H Poultry Feed Production Line
NO	Machine Name	Model	Power	Capacity	Q'ty
1	Hammer Mill	9FQ-420	7.5KW	300-500 kg/h	1
2	Feed Mixer	FH-500	3KW	500 kg/h	1
3	Screw conveyor	LS-200	1.5KW	400-500 kg/h	1
4	Feed Pellet Mill	PM-300B	22KW	400-600 kg/h	1
5	Pellet Cooler	LQJ-50	0.75+2.2KW	30-500KG/H	1
6	Controller	BK-1	/	/	1
Note: The configuration can be adjusted according to customers' needs.If you need the packaging machine,please kindly let us know.

The pellet cooler is used to cool down the pellets in a short period of time to prepare for subsequent packaging. Also can let the pellets cool dowm naturally.
500kg/h feed pellet line with feeding conveyor
500kg/h feed pellet line without pellet cooler

Product Advantages
Advantages of Poultry Feed Pellet Production Line
1. Simple structure, wide applicability, small floor space, low noise powder feed, do not add water or little water granulation can be carried out. 2. The moisture content of pellets smaller, more conducive to storage. 3. Grain hardness, surface finish, internal curing fully, can improve digestion and absorption of nutrients. So pathogenic microorganisms and parasites can be killed, be suitable for feeding rabbit, fish, duck and experimental animals. 4. The models has1.5~20 various diameter dies, be suitable for granulation of different materials and get the best results. 5. Be suitable for various materials, suppression effect can be guaranteed.
Related Production Line
Different Configuration/Capacity Feed Pellet Line
200-300kg/h Feed Pellet Line
1000kg/h Feed Pellet Line
1T-2T Feed Pellet Line
Raw Materials/Finished Pellets
Suitable for processing different kinds of raw materials:
1. Cereals:soybean, maize,corn, grain,sorghum,corn flour , wheat flour ,crop stalks (corn stalk, sorghum stalk, cotton, rape stalk,
peanut seedling, sunflower stalk), chaff, grasses, shrubs
2. Coarse fiber: wheat bran, corn stalk, soybean meal,grass meal,rice husk, grass, groundnut shell, cottonseed hull.
3. Additives: molasses, vegetable oil, Amino acid, bone meal, vitamin.
Final different size feed pellet:
1. Diameter of final feed pellets: 2mm, 3mm. 4mm, 5mm. 6mm, 8mm, 10mm, 12mm etc.
2. Length of feed pellet: Adjustable
Note:The same feed pellet line/machine can use die plates (with different hole diameters) to produce feed pellets of different sizes. Packaging & Shipping
