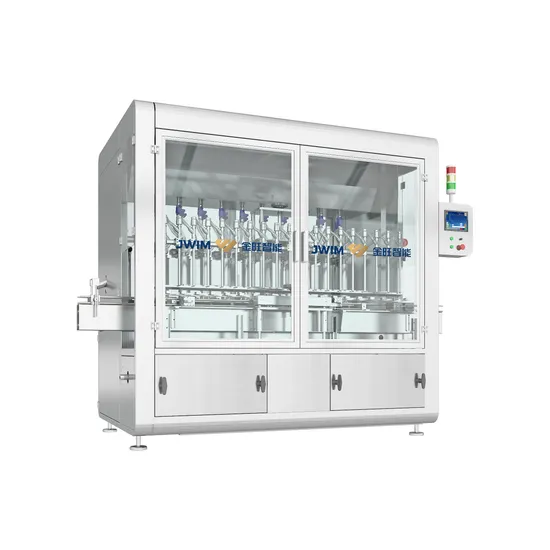

5L 600bph Automatic Volumetric Piston Pesticide High Viscosity Liquid Filling Machine

Product Description

CCG5000-6TS Automatic Piston Filling Machine is suitable for the packaging of various water agents and high viscosity products. Whole machine is of in-line structure, driven by servomotor and volume metering filling principle, which realizes high precision of filling dosage. It adopts PLC control, human-machine interface, and the whole machine is easy to operate.
Technical Parameters

1	Capacity	1000ml: ≤1200 BPH 5000ml:≤600 BPH Capacity differs from product, drum and product characteristic
2	Applicable Bottle Size	Round Bottle: Φ80-140mm Height:140-340mm Flat/Square Bottle: L: 80-200mm W: 80-140mm H: 140-340mm
3	Filling Volume	1000ml-5000ml
4	Filling Precision	±0.2% Precision differs from product, drum and product characteristic
5	Product Feeding Height	2550mm
6	Product Feeding Diameter	DN40
7	Filling Nozzle Diameter	Φ26mm
8	Min Opening Diameter	≥Φ30mm
9	Air Pressure	0.6-0.8MPa
10	Power Source	~380V 50Hz/2.2KW
11	External Dimension	2365×1600×2750mm(L×W×H)
12	Weight	About 2100kg

Working Process
1.Bottle in counting (Automatically inspecting quantity of bottles)
2.Bottle out block (Block out to position packing material)
3.Bottle in block (Block out to stop bottle in)
4.Bottle block (Bottle block is out to block the neck of bottle)
5.Diving filling (Motor diving. Nozzle dives to the bottom of bottles to fill)
6.Raise after finishing (Nozzle raises after material to the end)
7.Back to starting (After finishing, nozzle is back to starting
8.Bottle out block (Bottle out block is back and finished products is conveyed to next position)
9.Bottle in block (Bottle in block is back, empty packing material is conveyed to filling position)
10.Back and forth to finish filling


Application Scenario
Company Profile
Jiangsu Jinwang Intelligent Sci-Tech Co., Ltd (JWIM) established in May 2005. JWIM is a professional manufacturer engaged in agricultural and animal husbandry intelligent factory. We are a high-tech enterprise integrated with R&D, manufacturing, marketing and service.
JWIM products focus on the agriculture and animal husbandry industry, so far it has obtained more than 100 patent certificates, among them JWIM intellectual formulation workshop has 8 invention patents and 8 utility model patents. The products have been exported to more than 50 countries at home and abroad. We have provided professional services to more than 3, 000 agricultural and animal husbandry customers.
In order to adapt to the development of Industry 4.0 and Made in China 2025, the intellectual formulation workshop researched and developed by Jinwang is a safe, environmentally friendly, intelligent, integrated and efficient formulation workshop.
Our products include intelligent processing, intelligent packaging, intelligent storage, intelligent general control and intelligent factory. Our services include operation and maintenance services (Jinwang agrochemical Business School), remote services, contracted services, service station services, integrated workshop transformation services and EPCM services for intelligent factories.
We have an after-sales team of 200 service engineers, including 50 overseas after-sales service engineers, serving Vietnam, Indonesia, Thailand, Philippines and other countries all over the world. The global Internet service center can provide remote services to help customers solve problems online.
