CNC Busbar Cutting Punching Bending Machine 3in1-CNC Copper Processing for Copper

Product Description

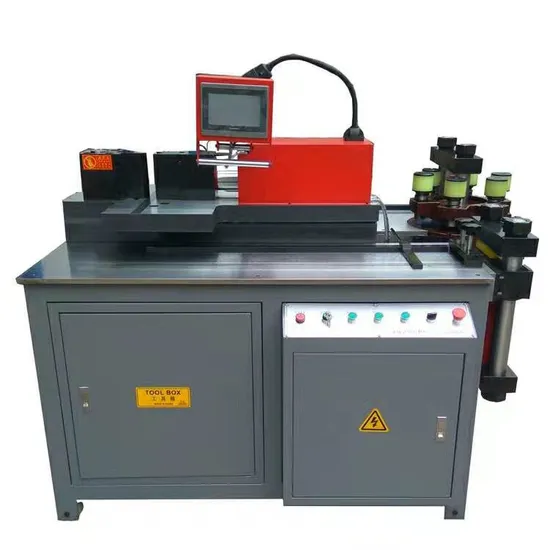

CNC busbar processing machine
A.Product Introduction
This machine is equipped with three processing stations: punching, cutting, and bending. It is controlled by Siemens PLC in Germany and its main function is to process copper and aluminum busbars of different specifications. When working, it is only necessary to select the corresponding processing station to cut and punch (round hole, oblong hole), bend horizontally, bend vertically, U-bend, emboss, flatten, twist Fried Dough Twists, press cable joints and other different processes conveniently and quickly. The cutting, punching, and bending stations use 45 # forging material II Main features:
1. The shear station adopts a double column shear structure, with a flat cross-section, no waste, burrs, or collapse angles.
2. The punching station is a six position rotary table, made of ductile iron material technology, without the need for mold replacement, reducing misoperation caused by frequent mold replacement and reducing the rate of mold damage. The turntable is an integral machined part, ensuring absolute alignment between the upper and lower molds, improving the concentricity of the mold, and greatly improving its service life.
3. The bending station adopts a closed bending structure, making it more uniform when processing flat bending and embossing. Greatly improves the accuracy of repeated positioning during batch production.
4. The bending station adopts a double-layer workbench, achieving a true sense of simultaneous operation of three stations without affecting each other.
5. It adopts German Siemens PLC control, bending angle CNC control, and has storage and memory function. Each workstation can be set with automatic shutdown time, saving a lot of electricity expenses for enterprises. The system comes with fine-tuning function, making it more convenient to use.
6. The hydraulic oil tank is welded with 3mm thick steel plates and has undergone phosphating treatment to ensure that the hydraulic oil will not deteriorate after long-term use.
B.Parameter list

Name	unit	ZMX30-3BK	ZMX50-3BK	ZMX80-3BK
Punching	Max(KN)	350KN	550KN	850KN
	Punching range(mm)	ф4.3~ф34	ф4.3~ф34	ф4.3~ф36
	Max thick(mm)	15mm	18mm	20mm
	Max width(mm)	160mm	260mm	300mm
Cutting	Max thick(mm)	12mm	18mm	20mm
	Max width(mm)	160mm	260mm	300mm
Bending	Max bend	350KN	550KN	850KN
	Max thick(mm)	15mm	18mm	20mm
	Max width(mm)	160mm	260mm	300mm
Vertical Bending	Max bend width	100mm	120mm	150mm
	Min bend angle	90°	90°	90°
Out size	MM	1750×1350×1500	1920mm×1550×1500	1950×1700×1500
Working table	1st layer size(mm)	1500mm×1300mm	1600mm×1400mm	1950×1700mm
	2ND layer size(mm)	940mm×420mm	1020mm×500mm	1100×500mm
Motor	kw	3×4KW	3×5.5KW	3×7.5KW
Weight	KG	1370KG	2050KG	2500KG
Voltage	V/hz	380V/50HZ	380V/50HZ	380V/50HZ
CNC spec.	Bending angle CNC German Siemens (Panasonic) PLC control direct input angle, accuracy ± 1 ° Cut, fold, and can work simultaneously. You can also input the height and side length to directly process the required workpiece (Z-bend). 2022 Technical Improvement Three Station Fully CNC Bus Processing Machine (to be customized)

1.Oil pump:	Taiwan	2.Overflow valve	YUYAAN
3.Relay:	Schneider	4.Contactor:	Schneider
5. Button switch:	Schneider	6.Motor:	juli
7.Touch screen:	Taiwan Xinjie	8.Encoder:	Guangyu
7.PLC Encoder:	Siemens, Germany (Panasonic, Japan)
