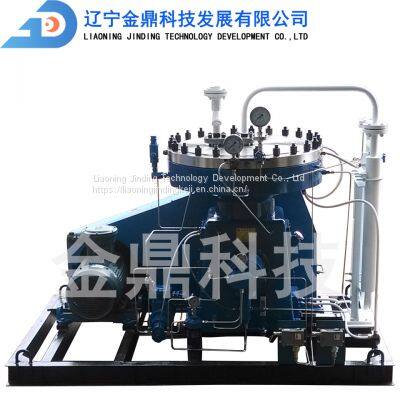

Supply Jinding m3z-20 / 13 diaphragm compressor

Product Details

Product Description

Product Description
The diaphragm compressor is driven by the motor, rotates the crankshaft through the belt pulley, and then passes through the connecting rod to make the piston in the oil cylinder move back and forth in a straight line, push the oil fluid and make the diaphragm vibrate back and forth. Under the control of the inlet and exhaust valve, each vibration of the diaphragm completes an inlet and exhaust process. When the membrane press works, a small amount of oil in the oil cylinder leaks into the oil tank through the gap between the piston ring, the cylinder wall and the ring groove. In order to compensate this part of the oil quantity, so that the diaphragm can cling to the cylinder head surface at the end of the compressor stroke and drain the compression medium, the compensation oil pump injects the oil into the oil cylinder during the suction process of the membrane compressor, and the oil quantity is slightly more than the leakage quantity. The excess oil quantity flows back to the crankcase through the pressure regulating valve controlling the oil pressure at the end of the compressor stroke.
Because the diaphragm completely separates the cylinder from the oil cylinder, the compressed medium does not contact with the oil, so as to avoid oil pollution and ensure the purity of the compressed medium. The cylinder is composed of cylinder head surface and diaphragm. It is a closed cavity, so it has good sealing.
Diaphragm compressor is a reciprocating compressor with special structure. It has large compression ratio and good sealing. The compressed gas is not polluted by lubricating oil and other solid impurities. It is suitable for compressing gases with high purity, rare and precious, flammable and explosive, toxic and harmful, corrosive and high pressure.

Product model	Volume flow Nm 3/h	Intake pressure MPa（G）	Exhaust pressure MPa（G）	speed r/min	Overall dimensions （L×W×H）mm	weight	Water consumption t/h	power kW
M2Z-5/13	5	0	1.3	400	1200×600×1000	0.5	0.2	1.5
M2Z-5/13-200	5	1.3	20	400	1200×600×1200	0.5	0.25	1.5
M2Z-18/80-350	18	8	35	400	1459×1000×1320	0.6	0.7	5.5
M2Z-12/7.5-40	12	0.75	4	400	1250×650×950	0.5	0.3	3
M2Z-30/150-320	30	15	32	400	1200×650×1230	0.5	0.25	5.5
M2Z-5/30-400	5	3	40	400	1200×800×1450	0.5	0.1	1.5
M2Z-50/31-51	50	3.1	5.1	400	1300×800×1250	0.6	0.3	3
M2Z-70/30-35	70	3	3.5	400	1300×800×1250	0.6	0.08	3
M2Z-7/6-50	7	0.6	5	400	1350×809×1480	0.6	0.5	3
M2Z-50/6-10	50	0.6	1.0	400	1280×760×1200	0.6	0.5	3
M3Z-80/1-10-20	80	0.1-1	2	400	1720×1000×1650	1.5	0.8	7.5
M3Z-20/13-200	20	1.3	20	400	1720×890×1640	1.4	0.8	7.5
M3Z-60/30-150	60	3	15	400	1720×890×1635	1.4	0.8	15
M3Z-50/6-50	50	0.6	5	400	1720×1050×1650	1.5	0.8	15
M3Z-50/6-30	50	0.6	3	400	1720×1050×1650	1.5	1	15
M3Z-22/1-10	22	0.1	1	400	2200×1600×1700	1.5	1.2	15
M3Z-185/6-15	185	0.6	1.5	400	1700×1260×1550	1.5	0.7	11
