High-Speed Crushing Equipment Gh-250
| US$5,000.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GH-250
Type
Impact Crusher
Application
Machinery & Hardware, Chemical, Construction, Mineral Industry, Stone Industry
Drive
Electric
Crushing Style
Grinding & Impact
Compressive Strength (For Crushing)
>300MPA
Crushing Degree
Coarse Crusher
Finished Surface
Outer Surface Process
Certification
CE, ISO
Condition
New
Color
Iron Grey
Construction Materials
Ss/Ms
Available Size
100-400
Grading Fineness
2-150um
Customized Features
Available
Electronic Control
by Button or PLC
Wear-Resistant, Anti-Corrosion Treatment
Available
Special Construction Materials
Available
Experiments with Customer′s Materials
Available
Complete Line
Available
Transport Package
Wooden Case Package
Specification
GH 100-400
Trademark
SENFAN
Origin
China
HS Code
8474209000
Production Capacity
500/Year
Product Description
High-Speed Crushing Equipment Gh-250Product Description

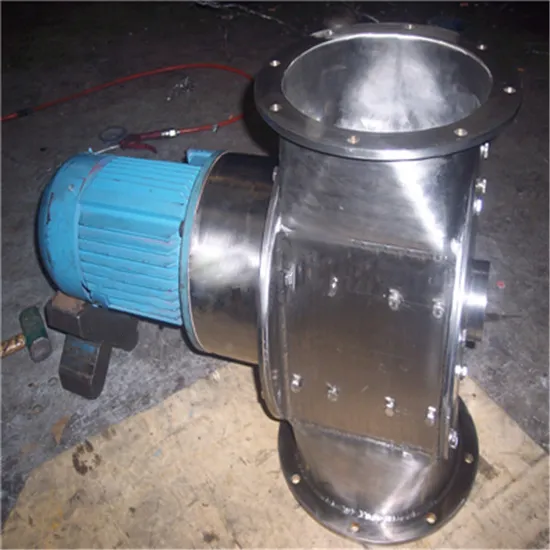

The machine is mainly composed of a body and a crushing disc assembly. The crushing disc is directly driven by a motor, which has a high crushing line speed. Multiple rows of crushing knives are installed on the crushing disc, and several fixed knives are mounted on both sides of the body, with a certain spacing maintained between the crushing knives and the fixed knives. The machine is installed and connected to a vertical pipe. When the material enters the cavity, it is broken by the impact of the high-speed rotating crushing knives under the action of the crushing knives, the sticky agglomerated materials are broken. This equipment is suitable for crushing aggregated materials and can also be used as a coarse crusher after feeding.
Scope of Application
It can be widely used in industries such as dyes, pigments, pesticides, chemicals, and food, and is an ideal pre-crushing equipment for use on assembly lines. It can be used for dry production as well as wet operation.
Product Parameters
| Model Parameters | GH-100 | GH-200 | GH-250 | GH-400 |
| Motor Power (KW) | 1.5 | 2.2 | 2.2 | 5.5 |
| Tube diameter (mm) | 100 | 200 | 250 | 400*400 |
| Spindle speed (r/min) | 1450 | 1450 | 1450 | 960 |
| Weight (kg) | 140 | 160 | 250 | 350 |
| Dimensions(mm) L*B*W | 810*550*500 | 710*500*450 | 740*350*500 | 1100*400*400 |
