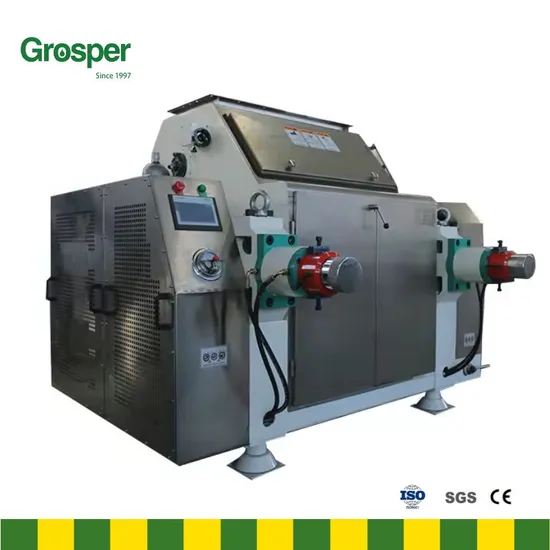

Grosperoat Flaking Mill Machine Fo6100sf Most Popular Food Grade Flaker
| US$65,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
FO6100SF
Processing Object
Cereals
Processing Technics
Crushing-before-Mixing
Grinding Equipment Type
Roll Crusher
Condition
New
Applicable Materials Shape
Granular
Warranty
One Year
Applicable Industries
Manufacturing Plant, Food Shop, Animal Husbandry
Core Components
Motor, Bearing, Roller, Pump Station
Application
Economic
Weight (Kg)
6500
Roller Size (mm)
600*1000
Roller Speed (Rpm)
280-330
Total Motor Power (Kw)
38.3
Specification
2100*2000*1800mm
Trademark
Grosper
Origin
China
Product Description
| category | Number | model | yield (ton/24hour) | Embryo thickness(mm) | Roll size(mm) | power(kw) | External dimensions(mm) | Host weight(ton) |
| Oat Flaking Mill | 1 | FO6100F | 40-50 | 0.4-0.5 | 600*1000 | 18.5*2+1.5+0.55 | 1900*2100*1900 | 6 |
| 2 | FO6100SF | 40-50 | 0.4-0.5 | 600*1000 | 37*1+0.75+0.55 | 2100*2000*1800 | 6.4 | |
| 3 | FO6080F | 30-40 | 0.4-0.5 | 600-800 | 15*2+1.5+0.55 | 1700*2100*1900 | 5.5 | |
| 4 | FO6080SF | 30-40 | 0.4-0.5 | 600*800 | 30*1+0.75+0.55 | 1900*2000*1800 | 5.5 |
| FO6100SF Flaker Technical Parameter | |||||
| 1 | Equipment name | FO6100SF Flaker | 2 | Model | FO6100SF |
| 3 | Chinese Trade Mark | /Liaohai Pearl | 4 | Abroad Trade Mark | Grosper |
| 5 | Capacity(T/D) | 40-50 | 6 | Raw material | Oat |
| 7 | Roller size(mm) | 600*1000 | 8 | Chill depth(mm) | 25-30mm |
| 9 | Roller materials | High Ni Cr Mo alloy | 10 | Chill hardness (hs) | 75±3 |
| 11 | Flake thickness(mm) | 0.40-0.50 | 12 | Roller speed(rpm) | 308 |
| 13 | Total motor power(kW) | 38.3 | 14 | Drive motor power(kW) | 37 |
| 15 | Reducer power(kW) | 0.55 | 16 | Weight(≈t) | 6.2 |
| 17 | Dimensions(mm) | 2100*2000*1800 | 18 | Bearing type | 23228CCK/W33 |
| 19 | Pulley type | 6SPB630-4040-100,6SPB200-3020-65,6SPB450-4040-100 | |||
