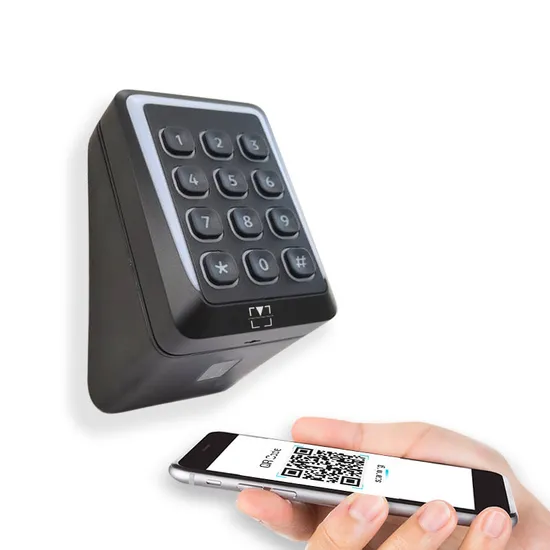

Wiegand IC Card Reader Qr Code Barcode Door Lock Control Access System
Basic Info.
Model NO.
Cidron-5
Interface
Serial Port, Osdp RS485, Weigand
Reading Distance
10cm-15m
Application
Parking, Hospital, Library, Company, Bank, Store
Product
4-in-1 Access Control Reader
Mobile ID
ISO18092 NFC, BLE (Blue Tooth)
RFID Card
125kHz Em, 13.56MHz DESFire EV1/EV2, MIFARE
Qr Code
Optional 1d & 2D Codes Qr Code, Barcodes
Keypad
with or Without Mechanical Keypad
Secure Module
MIFARE Sam AV2
Interfaces
RS485, Osdp, Wiegand
Indicator
LED Bar with Red, Green and Amber Intensely Adjust
Power
9-30V
Tamper Alarm
Embedded Tamper Alarm
Temperature
-40~70
Vandal Resistant
Anti-Vandal Protection
Dimension
Standard Size and Slimline Size for Selection
Complaince
CE, RoHS3, FCC
Transport Package
Well Package
Specification
L=109mm, H=25mm, W=79mm
Trademark
Cidron
Origin
China
Production Capacity
1000PCS/Month
Product Description
Product Overview The Cidron access control reader's compatibility with secure RFID-technologies, BLE, NFC mobile credential and QR code incorporated in a robust, yet timeless design, makes them ideally suited for both indoor - and outdoor installations in all kinds of physical access control applications| Operating Frequency | Operating Frequency |
| Contactless ISO Standard | ISO14443A/B, ISO18092 NFC |
| Contactless Cards | - EM Prox, EM4100, EM4200 - MIFARE Classic (4 byte, 7 byte), MIFARE Plus, MIFARE DESFire EV1 - ISO18092 NFC tags |
| Mobile ID | ISO18092 NFC, BLE |
| Secure Access Module | MIFARE SAM AV2, SAM card connection slot |
| Communication Interface | Wiegand, Clock/Data, RS485 (OSDP 1, OSDP 2, including Secure channel), BLE 4.0 |
| Keypad | 12 digit keypad |
| Indicators | - LED bar with red, green and Amber - Buzzer |
| Tamper Alarm | yes |
| Operating Temperature | -40° ~ +70°C |
| Operating Humidity | 0 ~ 95% RHNC (Relative Humidity No Condensation) |
| Housing Dimensions | SlimLine: L=141mm, H=25mm, W=48mm Standard: L=109mm, H=25mm, W=79mm |
Product Features
Configuration & Development Easy Configuration
CONFIG SOFTWARE TOOL & CONFIG CARD make users easily manage encrypted key, reader configuration and functional test.
Our Service Civintec is leading designer and manufacturer of access control device, we offer ODM customization on both hardware, reader housing, firmware and software design service.
Today, the competition is very tough in many markets, making it increasingly more important to stand out from the crowd and therefore we also offer the opportunity to profile your readers for increased recognition. You can choose between a laser engraved or printed logo in single color or in full color. This way, you get the readers to follow your or your customer's graphic profile.
