Specification:

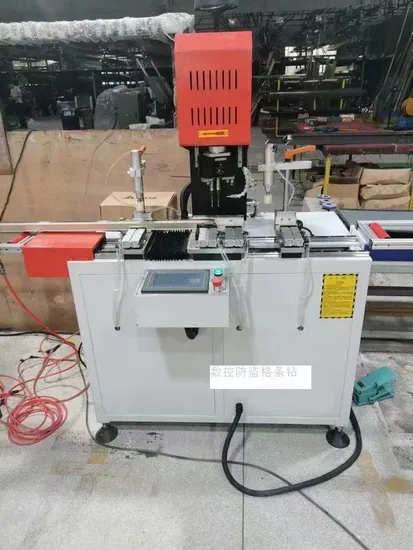

Used for louver hole drilling of aluminum window door DELTA CNC control the machine auto feeding, with high precision feeding length. No need customized die, save cost Taiwan 3-drilling head with ER11 chuck, which convenient for changing bit. Pneumatic clamping, safety for worker. There has feeding station and pulling station, with CNC system can control profile moving, and no waste profile. Each side with 1.5 meter supporter Technical parameter:

Power supply	380v,3 phase,50HZ
Motor power	1.1KW
Air consumption	30L/min
Bit specification	3 to 7mm
Max. feeding stroke	200mm
Feeding speed	0-6m/min
Closing height	160mm-200mm
Distance between parallel hole	1 to 210mm
Distance between Oblique hole	20 to112mm
Contour dimension	1100×700×1600mm (L×W×H )
Weight	400KG
