High Speed CNC Wire Cutting Machine Dk 7750

Product Description

ZHENYUE EDM WIRE CUTTING MACHINE
Main Feature :
-Modular electrical structure and use industry livel IPC, So the system has high stability.
-Design of Sealed type electric cabinet with heat exchange function.
-Fast axis shift shorten the skip machining and taper machining time.
-It applies high precision optical ruler(1 u m)real-time fully closed-loop control, and has absolute coordinate positioning and pitch compensation function.
-Motor and clearance automatic compensation style screw direct-connection reduces the drive clearance
-Fixed cantilever structure give the wire traveling system high stability.
-The enclosed design of machining area.

DK7750	PARANETER	Unit
	Electrical Specification
	Input Voltage	V	380
	Max.input Power	KW	<1.5
	Max.output Current	A	6
	Max.material Removal Rate	mm³/min	160
	Best Surface Finishing	um	Ra≤0.8
	Machinery Specification
	Work Table Size	mm	650*400
	Work Table Stroke	mm	400*320
	Max.machining Thickness	mm	400
	Max.workpiece Weight	kg	350
	Max.cutting Width	mm	±3°/150
	Wire Electrode Diameter	mm	0.12-0.2
	Wire Traveling Speed	m/s	0.8-11
	Machining Accuracy	mm	≤0.01
	Machine Weight	kg	1430
	Machine Size(w*d*h)	mm	1250*1620*2010
	Operating Liquid Water-tank	L	100

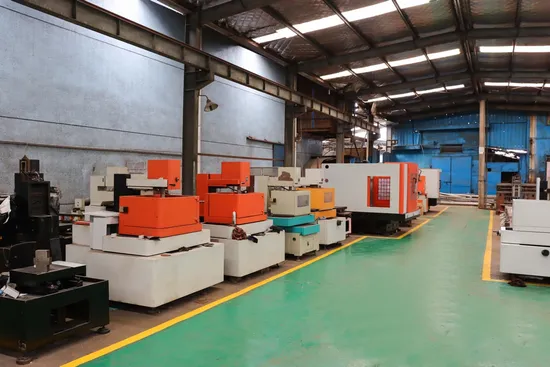

Zhenyue Group is a specialized company engaging in the Research, Development ,Production and Sales of Mechanical and electrical integrated products.
There are mainly five product series Including: CNC Miller, Machining Center, Plastic Injection Molding Machine, CNC wire cutting Machine, CNC Electrical Impulse.
In recent years Zhenyue has got honours in succession, for example,"One of Top Hundred Key Enterprises in Ningbo", "AAA Credit Company in Ningbo", etc.
Zhengyue products won HI-tech Prize and New Product Prize of the Municipal ,Provincial and State Level. The total construction scale of Zhengyue reaches to 66,000 square meters. With a first-class managing center ,it now has over 500 workers and staffs, among which 30% are R&D personnel. This R&D team allows Zhenyue to develop new products with the worlds most advanced technology.
After-Sale Service :
1. Technical files service provided.
2. On-site training service provided.
3. Free training course at our plant.
4. Lifetime maintenance free of charge.
5. Technical support online service provided.
6. Spare parts replacement and repair service provided.
7. We will provide the consumable parts at an agency price when you need replacement.
FAQ :
How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading
