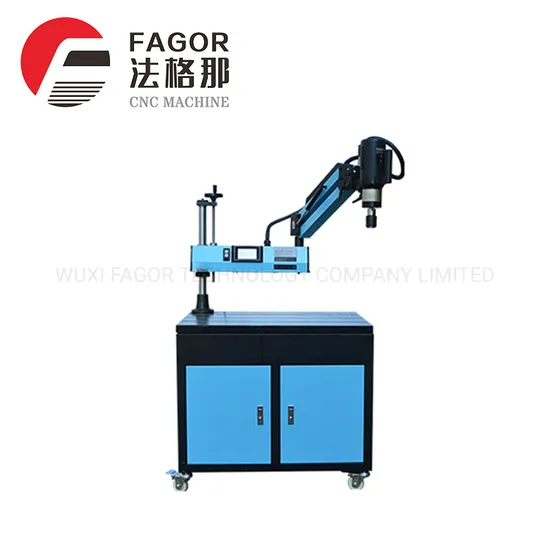

Intelligent Servo System Universal Head Automatic Rubber Tapping Machine

Intelligent Servo System Universal Head Automatic Rubber Tapping Machine

US$100.00-1,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
M3-M16 M6-M24 M6-M30 M6-M36 M12-M48
Layout
Vertical/Horizontal/Universal
Number of Shaft
3
Automatic Grade
Manual and Automatic
Precision
High Precision
Condition
New
Control Panel
Touch Screen
Working Diameter
1m-1.3m
Motor Power
220V/600W 220V/1200W
Speed
0-312rpm
Chuck
8PCS 9PCS 11PCS
Transport Package
Wooden Packing
Specification
30KG
Origin
China
Production Capacity
5000

Product Description

TYPE Electric M3-M16 Electric M6-M24 Electric M6-M30 Electric M6-M36 Electric M12-M48
APPLICABLE THREAD M3-M16 M6-M24 M6-M30 M6-M36 M12-M48
CONTROL PANEL Touch screen Touch screen Touch screen Touch screen Touch screen
WORKING ANGLE Vertical Vertical Vertical Vertical Vertical
Universal Universal Universal Universal Universal
WORKING MODE Vertical/Horizontal Vertical/Horizontal Vertical/Horizontal Vertical/Horizontal Vertical/Horizontal
Universal Universal Universal Universal Universal
WORKING DIAMETER 1M 1.2M 1.2M 1.3M 1.3M
MOTOR POWER 220V/600W 220V/1200W 220V/1200W 220V/1200W 220V/1200W
SPEED 0-312rpm 0-200rpm 0-200rpm 0-150rpm 0-250rpm
CHUCK 8PCS 8PCS 9PCS 11PCS 11PCS
NET WEIGHT 30KG 48KG 48KG 55KG 100KG
OPTIONAL ACCESSORIES: 600x900 Movable worktable, 600x900 Movable worktable with drawer,600kgs permanent magnetic chuck, 1000kgs permanent magnetic chuck,6 inch angle grip vise.

1. This machine adopts servo drive control with intelligent torque protection;
2. The machine uses a variety of processes to use mold castings, which have strong overall rigidity, durability and no deformation, and beautiful appearance;
3. The high-definition touch screen is simple and flexible to operate. It can realize vertical and horizontal work for complex and heavy workpieces, quickly locate and process accurately;
4. There are three working modes of infinitely variable speed, manual, automatic and linkage for you to choose
