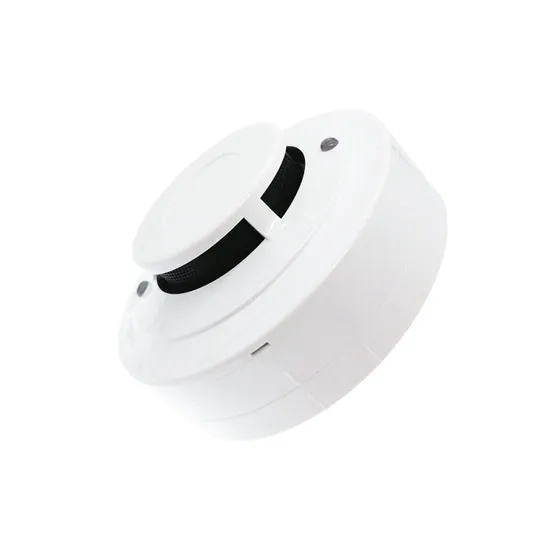

Wired Smoke Alarm Detector for Fire Safety and Security System En Approved

Product Description

Product Description
This product named Photoelectric smoke detector (hereinafter called detector) detects the smoke by a couple of infrared diodes.
The principle of detecting is granule in the smoke can reflect infrared light. Infrared diodes are placed in the special chamber.
The chamber can shield external light, but doesn't affect the smoke into it. While there is no smoke, the diode can receive very weak infrared light. When the smoke entering the chamber, diode can receive more and more light, and the detector can give out alarm signal when the smoke attains the certain density.
In order to reduce the interference and lower power consumption, the emitting circuit adopts the pulse signal. The product in accordance with the networking approach is divided into 2-wire and 4-wire detectors.
Product Parameters
•Operating voltage:DC:9V~35V(orders:DC40~60V)
•Standby current:≤80uA
•Alarm current: ≤40mA@DC24V; ≤25mA@DC12V
•Alarm indication: red LED
•Reset: power off or auto reset
•Operating temperature: -10ºC +50ºC
•Operating humidity: ≤95 RH
•Alarm output: Remote led for 2 wires; relay output for 4 wires
•contact rating N/A for 2 wires; 0.5A@DC28V for 4 wires
•Sensitivity: 0.08-0.16db/m(±0.1db/m)
•Standard: EN54-7:2008
•Certificate: CE
•Dimension: Ø101 * 49mm
•Reed Switch for testing Related Products
