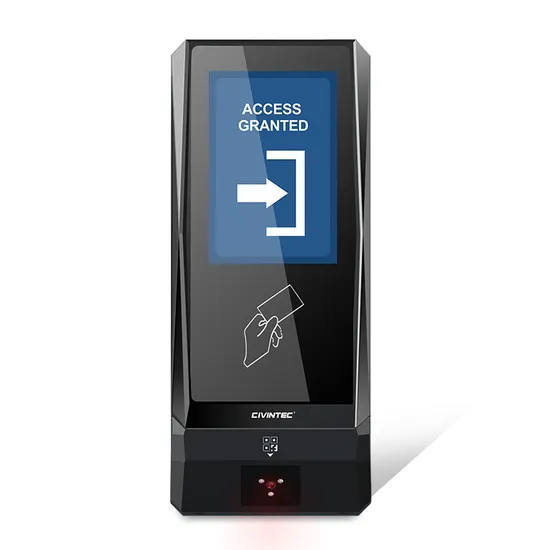

IP65 Wall Mount No Touch IP Access Controller with Qr Code Barcode Scanner, RFID, BLE and NFC Reader

Product Description

Product Overview CT9 Family is Linux based HTTP/HTTPs server centralized terminal with wireless WiFi, 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz, HID Prox and iCLASS®, iCLASS SE/SR®, iCLASS Seos® smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone.
HTTP Server Centralized Access Control & IOT System with RFID / QR CODE / BLE Mobile ID Reader
3.5" Touch Screen or Keypad Reader
with Embedded LINUX OS & SDK
+
Embedded WIFI,4G & TCP/IP Ethernet HTTP/HTTPs
for both LAN & Internet Server Software
+
Embedded Relay Control for Lock & Facility Control
Support both of HOST Mode & Local Mode

CT9 FAMILY	CT9 E	CT9 PRO
IDENTIFICATION TECHNOLOGIES
RFID Contactless Cards	- 125KHz PROx, 125KHz EM - 13 . 56MHz Mifare® Classic, Ultralight®, Mifare® Plus, DESFire® EV1/ EV2/ EV3, NFC tags - HID iCLASS; HID Seos; 125KHz HID Prox, Indala, EM4100/4102 and HITAG (CT9 PRO-D); HID mobile virtual card
Mobile Credential	BLE (2.4Ghz), NFC
Barcode / QR scanner	1D & 2D QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes
Secure Access Module	ISO7816 (T =0,T = 1) 1 SAM module, SAM AV2
INTERFACE
Communication Interfaces	- TCP/ IP(RJ45) - 4G - WiFi 2 .4GHz IEEE802.11b/g/n - RS485, wiegand input
I/ O port	Door contact, Door exit, Buzzer control, Fire alarm, Tamper alarm switch, Output Buzzer control, Access Granted, Access Denied, 1~2 relay outputs
GENERAL
Operating System	LINUX
Display	-----	3 .5" touch screen
Keypad	12 digit Touch keypad with backlit	Touch screen keypad
Online Card Users / Event logs	Unlimited
Offline Card Users / Event logs	10,000 users / 50,000 logs (more on request)
APB access control	Yes, external wiegand reader
Indicators	- LEDs - Buzzer and speaker
Power supply	- 12~ 24V DC - PoE IEEE 802 . 3af
Protection Class	IP65 electric epoxy potted (request waterproof spacer) Resistant to UV ray (suitable for UV-resistance model)

* The specifications are subject to change without notice .
Product Features Multiple Access Credential
CT9 Family incorporates with 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone for visitor access control management.
Easy Configurable User Interface
Stylish Linux 3.5" colorful touch screen bring intuitive and clear feedback to visitor. Give access for user to easily program UI and display customized pictures and TEXT, branding LOGO by software tool and HTTP commands
Cloud Server Remote Control for Security & IoT System
Bio-direction communication via standard HTTP & HTTPs between CT9 Family and server to remotely control door lock and various IoT facility management
Multiple Application Solutions
Crystal Touch CT9 Family is IP access control door reader remotely controlled by cloud web based software in real time via HTTP or HTTPs encrypted communication. It is with embedded relay output to control door lock as ACCESS DENIED or ACCESS GRANTED. It can also control facility to build IoT solution.
Weather-Resistant Protection
With IP65 ratings, CT9 Family is weather resistant to rain, dust, strong sunlight, ideal for outdoor use, low temperature various rugged working environments.
System Configuration
Our Service Civintec is leading designer and manufacturer of access control device, we offer ODM customization on both hardware, reader housing, firmware and software design service.
User can free program and display own LOGO on 3.5" touch screen. Civintec also offer OEM LOGO printing on reader body.
