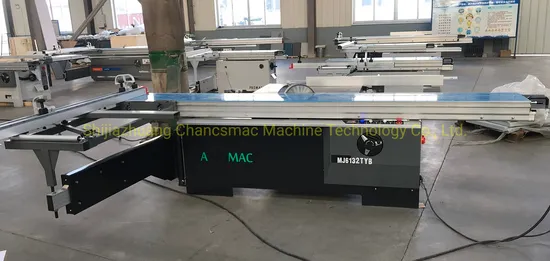

Woodworking Machinery Sliding Panel Saw Mj6132
| US$1,990.00-5,500.00 | 1 set (MOQ) |
Basic Info.
Model NO.
Mj6132
Power Type
Electric
Layout
Horizontal
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Precision
Customized
Customized
Condition
New
Color
Customized
After-sales Service
Free Service on Internet
Cutting Height
80mm
Transport Package
PE Film
Trademark
CHANCSMAC
Origin
China
Production Capacity
15 Sets/ Month
Product Description
| Model | MJ6132TY | MJ6132TYB | MJ6132TYBD |
| Sliding table size | 3200x370mm | 3200x360mm | 3200x370mm |
| Gross cut capacity | 3200mm | 3200mm | 3200mm |
| Width of cut between saw blade and rip fence | 1250mm | 1250mm | 1250mm |
| Saw blade diameter | φ300mm(φ250-φ315) | φ300mm(φ250-φ315) | φ300mm(φ250-φ315) |
| Cutting height | 80mm | 80mm | 80mm |
| Diameter of guide shaft spindle | φ55 mm | φ55 mm | φ55 mm |
| Speed of main saw spindle | 4000/6000rpm | 4000/6000rpm | 4000/6000rpm |
| Main spindle diameter | φ30mm | φ30mm | φ30mm |
| Tilting saw blade | 0-45° | 0-45° | 0-45° |
| Main motor | 5.5kw | 5.5kw | 5.5kw |
| Scoring saw blade diameter | φ120mm | φ120mm | φ120mm |
| Speed of scoring saw | 8000r/min | 8000r/min | 8000r/min |
| Scoring spindle diameter | φ20mm | φ20mm | φ20mm |
| Scoring saw motor | 0.75kw | 0.75kw | 0.75kw |
| Total weight Plywood packing/ net weight | 765kg/ 645kg | 765kg/ 645kg | 765kg/ 645kg |
| Overall size | 3250x3390x870mm | 3250x3390x870mm | 3250x3390x870mm |
