Depth Filter Sheet Wine Cellulose Perlite Wine Depth Filter Sheets 40*40

Product Description

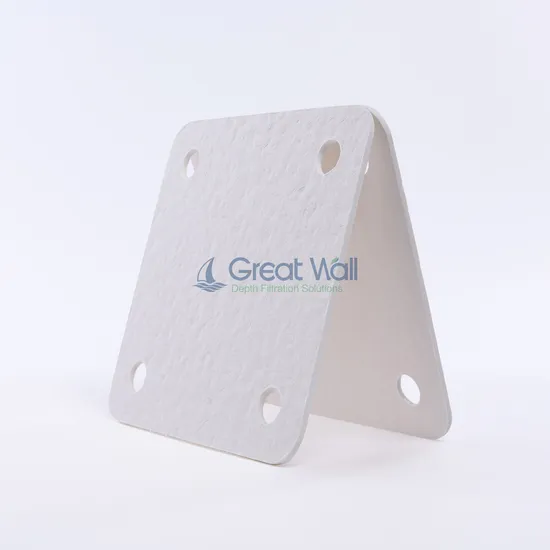

Product description Great Wall Standard Series Depth Filter Sheets: Suitable for a variety of applications Introducing Great Wall Standard Series Depth Filter Sheets. This versatile series offers a choice of cut-off grades, from 20.0 to 0.2 µm, ensuring our filter media can meet the most demanding liquid filtration requirements. Our depth filter sheets are engineered to have an optimal pore structure and superior adsorption properties for excellent clarification performance in a wide range of grades. They are suitable for a wide range of applications including microbial reduction and processes requiring polishing, fine filtration, clarification and straining. Trust the Standard Series to provide excellent filtration. Specific Advantages Great Wall's standard range of depth filter sheets provides homogeneous and consistent filter media and is available in multiple grades. Due to their excellent wet strength, these filter sheets have high media stability. Through a unique combination of surface, depth and adsorption filtration, our filter plates reliably retain the components to be separated. Their ideal pore structure ensures efficient filtration and high clarification performance. To promote an economical service life, our filter plates have a high dirt holding capacity. In addition, we carry out comprehensive quality control on all raw materials and auxiliary materials, and ensure consistent quality through process monitoring. Product Usage
Applications
Great Wall's standard range of depth filter sheets offers a range of solutions for a variety of filtration needs. Our selection includes filter plates designed for clarification and coarse filtration, as well as filter plates for microbial reduction and fine filtration.
For clarification filtration applications, we recommend our SCP-309, SCP-311, and SCP-312 depth filter sheets. These sheets have a large volume cavity structure and high particle holding capacity, ensuring efficient and effective filtration.
When it comes to microbial reduction and fine filtration, our SCP-321, SCP-332, SCP-333, and SCP-334 depth filter sheets are the perfect choice. These sheets excel at retaining ultrafine particles and have a bacteria-reducing effect, making them ideal for achieving high levels of clarification. They are especially suitable for ensuring turbidity-free filtration of liquids prior to storage and bottling.
For the reduction and removal of microorganisms, we offer SCP-335, SCP-336, and SCP-337 depth filter papers. These sheets have a high bacterial retention rate, making them especially suitable for cold aseptic bottling or liquid storage. Their fine pore structure combined with electromotive force and adsorption ensure efficient bacterial retention. In addition, these sheets have a high retention capacity for colloidal components, making them ideal as prefilters for subsequent membrane filtration processes. Our depth filter sheets are used in a variety of industries including wine, beer, juice, spirits, food, fine and specialty chemicals, biotechnology, among others. Choose Great Wall's standard range for a reliable and efficient filtration solution.
Operation of filter sheet installed on filter press
Wine inlet and outlet Main Constituents The Standard Series depth filter sheets are made from particularly pure natural materials:
* Cellulose
* Natural filter aid diatomaceous earth (DE, Kieselguhr)
* Wet strength resin Relative Retention Rating *These figures have been determined in accordance with in-house test methods.
*Effective removal performance of filter sheets is dependent on process conditions.
This information is intended as a guideline for the selection of Great Wall depth filter sheets.

Model	Flow Time (s)	Thickness (mm)	Nominal retention rate (μm)	Water permeability (L/m²/min△=100kPa	Dry Bursting Strength (kPa≥)	Wet bursting strength (kPa≥)	Ash content %
SCP-309	30″-2″	3.4-4.0	10-20	425-830	550	180	28
SCP-311	1'30-4′	3.4-4.0	5-12	350-550	550	230	28
SCP-312	4′-7′	3.4-4.0	3-6	200-280	550	230	35
SCP-321	7′-10′	3.4-4.0	1.5-3.0	160-210	550	200	37.5
SCP-332	10′-20′	3.4-4.0	0.8-1.5	99-128	550	200	49
SCP-333	20′-30′	3.4-4.0	0.6-1.0	70-110	500	200	48
SCP-333H	15′-25′	3.4-4.0	0.8-1.5	85-120	550	180	46
SCP-334	30′-40′	3.4-4.0	0.5-0.8	65-88	500	200	47
SCP-334H	25′-35′	3.4-4.0	0.6-0.8	70-105	550	180	46
SCP-335	40′-50′	3.4-4.0	0.3-0.45	42-68	500	180	52
SCP-336	50′-70′	3.4-4.0	0.2-0.4	26-47	450	180	52
SCP-337	60′-80′	3.4-4.0	0.2-0.3	21-36	450	180	52

Company Profile Shenyang Great Wall Filtration Co.,Ltd was established in 1989, it is manufacturer specializing in the production of Filter paper and Filter sheets. The product is used for filtration in the food and beverage industry, Oil industry,chemical industry and food additives and other industries
We have production workshop and Research and Development department, and have the ability to develop new product series with customers.Also, our company is the drafting unit of China's filter paper industry board standard and the first brand of China's filter paperboard.
At present, our company cooperates with many well-known domestic and foreign corporate brands such as: beverages Pepsi and Coca-Cola, beer InBev and Tsingtao Brewery, WACKER chemical industry, etc.,
Our company has professional technicians who are very experienced in filtration; we can provide your company with technical support for filter paper at any time. Packing & Delivery Great Wall filter sheets are packaged in hygienic plastic bags and after that in cartons. Special packaging is available on request.
FAQ 1.Q: Are you a factory or a trading company?
A: We are a professional manufacturing factory of Filter sheets, we are able to supply you with top quality and perfect
workmanship. OEM and ODM products.
2.Q: What is your Product material?
A: Our products are made up from high quality wood pulp, cotton pulp, cellulose, diatomaceous earth and so on.
3. Q:What's you sample policy?
A: We can provide some samples free for your test, freight will be paid by your side.
4.Q: Can you do any size?
A: Yes, we can do any size according to your request.
5.Q: What are your manufacturing and shipping time?
A: About 15-25 days after confirming the details.
6.Q: What certification do you have?
A: 1).Quality Management System ISO 9001 and Environmental Management System ISO 14001.
2). Food contact certificates
3). Meet testing Lab requirements
The products are pure natural raw materials, and can be tested according to customer requirements, including calcium and magnesiumion and heavy metal detection
