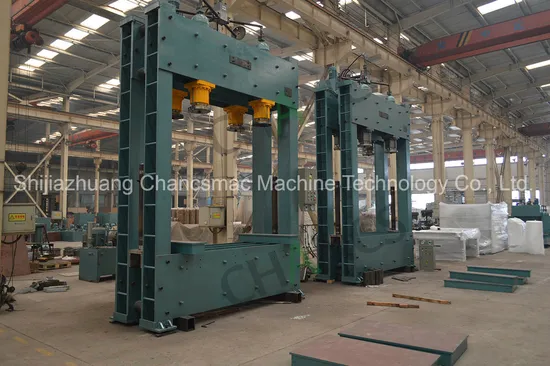

Pre-Forming Cold Press for Woodworking Machinery
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
BY814X8/35
Processing Technics
Cold Press
Structure
Frame Type
Pressing Shape
Flat Press
Platen Surface Pressure
High Pressure
Pressing Layer
Single Layer
Work Mode
Continuous
Automatic Grade
Automatic
After-sales Service
Free Service on Internet
Model
By814X8/35
Voltage
3PE 380V 50Hz or Customized Voltage
Total Pressure
3500kn
Working Layer
1 Layer
Working Table Size
2700X1370mm
Opening
1300mm
Stroke
1000mm
Installation Power
5.5kw
Loading Way
Length Side, Manually
Close Speed
3730X1940X4740mm
Transport Package
PE Film
Specification
3730x1940x4740mm
Trademark
CHANCSMAC
Origin
China
Production Capacity
10 Sets/Month
Product Description
Pre-Forming Cold Press1.Introduction:Pre-Forming Cold Press Machine is designed for plywood pre-forming.The Pressure and working table size can be customized.
2.Parameter:
| Product name | PRE-FORMING PRESS (COLD PRESS MACHINE) | ||
| Model | BY814X8/35 | BY814X8/50 | BY814×8/80 |
| Voltage | 3PE 380V 50Hz or customized voltage | ||
| Total pressure | 3500KN | 5000KN | 8000kN |
| Working layer | 1 layer | 1 layer | 1 layer |
| Working table Size | 2700x1370mm | 2700x1370mm | 2700x1370mm |
| Opening | 1300mm | 1500mm | 1500mm |
| Stroke | 1000mm | 1000mm | 1000mm |
| Main cylinder No.& Dia | 4-φ190mm | 4-φ240mm | 6-φ240mm |
| Raising cylinder No.& Dia | 2-φ85mm | 2-φ85mm | 2-φ85mm |
| Installation power | 5.5kw | 5.5kw | 5.5kw |
| Loading way | Length side, Manually | ||
| Close speed | 50mm/s | 50mm/s | 50mm/s |
| Overall size | 3730x1940x4740mm | 3730×1940×5410mm | 3730×2090×5960mm |
| Gross Weight | About 15130 kg | About 17520 kg | About 19670 kg |
3.Processing in factory:
4.After-sale service:
1. Engineers available to serve and train customers overseas.
2. Machine guarantee is one year.
3. English manual and PPT installation and operation file with pictures step by step.
4. Whole life technical support for CHANCSMAC machinery.
5.FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact us
1. Q: What's the MOQ?
R: One set will be ok.
2. Q: Provide customized machine Yes or NO?
R: Yes. We have professional designers and engineers to supply customized machines.
3. Q: What is payment terms?
R: 30%T/T in advance, the balance paid before shipment after inspection.
4. Q: What is the warranty time?
R: One year.
