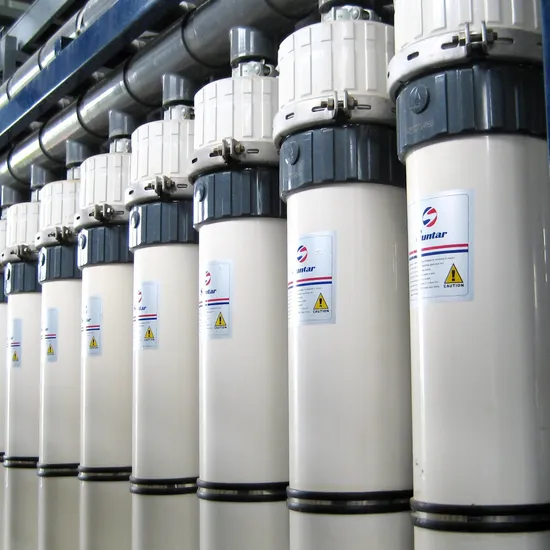

Suntar PVDF Hollow Fiber Pressurized UF Membrane Filter Outside-in

Product Description

Suntar's Outside-In hollow fiber membrane based on nano-reinforced hollow fiber membrane material technology, which jointly developed by Xiamen University and National University of Singapore. At present, Suntar's external pressure (Outside-in) hollow fiber membrane module have been widely used in industrial wastewater treatment, sewage treatment, reclaimed water treatment, surface water treatment, reverse osmosis pretreatment and many other fields.
At present, Suntar's hollow fiber membrane modules have been widely used in industrial wastewater treatment, sewage treatment, reclaimed water treatment, surface water treatment, pretreatment of reverse osmosis membrane and so on.
FeaturesHigh strength: excellent tensile and compressive properties due on unique nano reinforcement technologyAnti-pollution: unique surface characteristics, strong anti-pollution abilityHigh flux: high porosity per unit area, strong water permeabilityHigh stability: high quality PVDF material, resistant to oxidation and pollutionHigh efficiency: simple structure, easy operation and high separation efficiencyLow energy consumption: low filtration resistance, less TMPSpecifications

Model		SUF-1809B	SUF-2309B
Membrane Specification	Membrane Material	PVDF
	Membrane Area (m2)	52	75
	Pore size (μm)	<0.1μm
	Fiber ID/OD (mm)	0.7/1.4
Operation Condition	Filtration Mode	Outside-in
	Max Feed Pressure (Mpa)	0.3
	Operation Temperature (ºC)	5-45
	pH Range (Operation)	2-11
	pH Range (CIP)	1-12
Module Material	Housing	UPVC
	Binder	Epoxy resin + Polyurethane
Dimension	Module (mm)	1860×225Φ	2360×225Φ
	Nozzle	DN50
Weight	Filled with water (kg)	75	90
	Dry module (kg)	35	42

ApplicationIndustrial ApplicationIndustrial water tertiary treatmentReclaimed water treatmentProcess water treatmentOthers Municipal water treatment Civil water treatment Upgrading of sewage treatment plant
