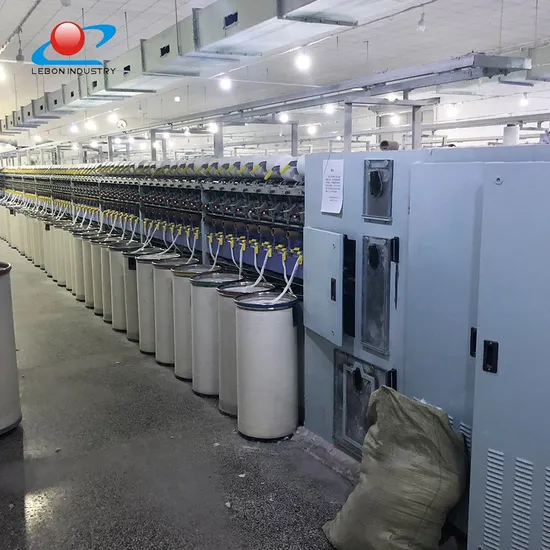

Open End Machines Yarn Processing Machine Production Line for Waste Cotton Fiber
| US$47,000.00-49,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LBQL-01
Spinning Method
Rotor Spinning
Processing Material
Cotton
Producing Process
Spinning Equipment
Certification
CE, RoHS, ISO9001: 2000, REACH
Warranty
1year
Customized
Customized
Condition
New
After-sales Service
1 Year
Suitable
Cotton Sliver,Cotton Yarn
Control
PLC Touch Screen
Speed
High Speed, Middle Speed Customerized
Model
A186g, Fa231,Lb1237
Fuction
Cotton Yarn Making
Used for
Cotton Spinning
Grams
1.5g-6g
Raw Material
Cotton or Polyester
Popular Country
Vietnam, India, Pakistan, Turkey, etc
Key
Spinning Carding Machine
Final Products
OE Spinning Yarn, Ring Spinning Yarn
Capacity
30-100kg/H
Weight
About 4500 Kg
Power
10-15kw
Rpm
350-450
Transport Package
Export Standard
Specification
1-1.5m
Trademark
Lebon industry
Origin
China
HS Code
8445111300
Production Capacity
100-1000kg/H Customerized
Packaging & Delivery
Package Size
200.00cm * 180.00cm * 180.00cm
Package Gross Weight
300.000kg
Product Description
Application:
Use cotton and chemical fiber spinning pure or blended with feeding.to get the cotton sliver and ready for next step.
Technical Parameter:
| Scope of application | Apply to the local cotton and chemical fiber spinning pure or blended cotton roll feeding | |
| Quantitative production | 1.0 ~ 2.0 g / m | |
| Production | 20-30kg / h | |
| Working width | 1000 mm | |
| Additional pieces of comb | Roller carding a board | |
| Cover fixed after 2 | ||
| Cover fixed | ||
| Drawing a multiple of total | 67 ~ 120 | |
| Spurs roll diameter of the work | Φ250 mm | |
| Barbed roller speed of the work | Cotton | 1070 to / |
| Fiber | 980 / | |
| Work of the cylinder diameter | Φ1289 mm | |
| Cylinder speed of the work | Cotton | 360 / |
| Fiber | 330 / | |
| Work of Adolf diameter | Φ706 mm | |
| Speed of the work of Adolf | 21.3 ~ 38.2 to / | |
| Cover the number can (cover work / cover of the total) | 40/106 | |
| flat rate of | Cotton | 177 214 266 mm / sub |
| Fiber | 81 98 122 mm / sub | |
| Sliver application of the tube (diameter × height) | Φ600 × 900 mm φ600 × 1100 mm | |
| Dust | Cylinder triangle-Astoria, gill cover roller cover, curtain delivery vehicles belly 3 miscellaneous cleaning | |
| Suction air flow in a row | 1300 m 3 / h | |
| Wind | -500 ~ -600 Pa | |
| Total power installed capacity | 8.4 kW | |
| Adolf drive motor | 1.1 kW (frequency, a significant number of users may choose to use) | |
| Area (length × width) | 3809 × 2092 mm | |
| Weight of the whole machine | About 4500 kg | |
