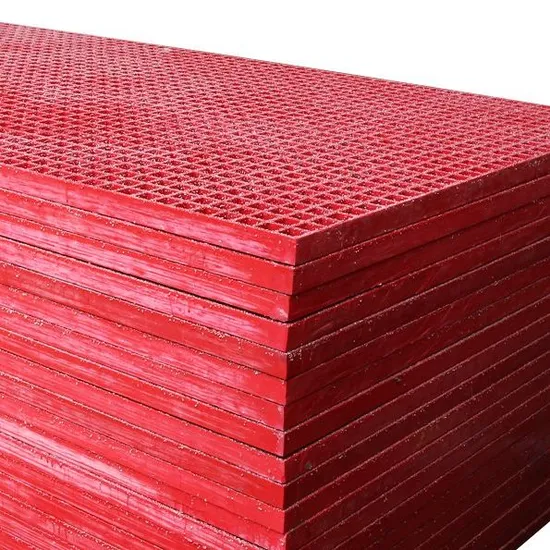

38*38mm 25mm Platform Walkway Floor Composite FRP Molded Grating Fiberglass Grating

Product Description

38*38mm 25mm Platform Walkway Floor Composite FRP Molded Grating Fiberglass Grating
Product Description Firberglass Molded grating is manufactured by laying continuous glass fibres in the mould in the direction of vertical and horizontal, and thurougly wetted out with resin, layer by layer.
FRP grating are designed with a high safety factor and are manufactured according to the DIN 24537-3 standard.Comparing with other floor materials, FRP moulded grating provides a series of benefits, unmatched impact resistance, while the strength-weight-ratio is only one-fourth of that of steel grating. It is easy to cut and install. FRP moulded grating is made of continuous fiberglass fully soaked in unsaturated polyester resin giving a uniform structure and perfect bi-directional mechanical properties.
Fiber glass grating producing process such as post applied grit could be bonded after as a secondary operation.This continuous process produces an integral, one piece panel,Frp grating offers excellent corrosion resistance as well as bi-directional strength.
Detailed Photos

Product Parameters If you need more sizes, please contact us

Item	Thickness mm	Mesh Size mm*mm	Panel Size mm*mm	Weight kg/Square Meter
QH01	15	38*38	1220*3660	7
QH02	15	50*50	1220*3660	6.5
QH03	25	25*100	1010*3010	12.4
QH04	25	19*19	1220*3660	12.5
QH05	30	19*19	1220*3660	21.5
QH06	30	38*38	1220*4040	15.1
QH07	38	19*19	1220*3660	22.8
QH08	38	38*38	1000*4040	19.5
QH09	38	38*38	1220*3660	19.5
QH10	40	40*40	1250*3690	19.3
QH11	50	50*50	1220*3660	21.5

Available Resins of Fiberglass grating

Symbol	Resin Basic	Corrosion Resistance	Applied Occasions
VE	Vinyl ester	Very good	Severely corroded environment by acid and solvent
ISO	ISO-phthalic	Good	Acid resistant very good,alkali resistant is general and solvent
Ortho	Ortho-phthalic	common	General acid and alkali environment

Application of frp grating FRP grating is widely used in the fields of petrochemical industry,textile printing and dyeing,food processing, electronics industry,pharmaceutical manufacturing, metal smelting,sewage treatment,transportation,water plant breeding,pulp and paper,shipbuilding,civil architecture etc.
The concrete uses include operating platform,overhauling walkways, driling platform,terrace,stair steps,equipment aisle,trench over,boat deck,fence etc
Our factory Qinghui frp is a professional manufacturer of FRP molded grating,pultruded grating and other profiles.We have rich experience in production and management.Relying on advanced equipment and technology at home and abroad, after years of development and exploration, Qinghui has become an international and modern manufacturer of FRP platforms and grilles.
FAQ Q: How long is your delivery time?
A: 10 days for 20GP | 20 days for 40GP, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: We can offer samples for free.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
