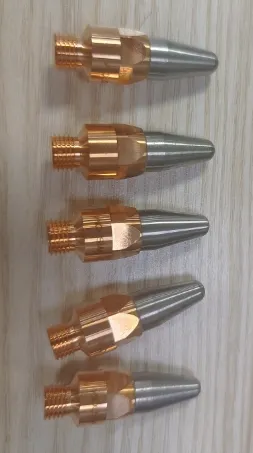

Best Quality of Electrode for Sg100 Gun From Wisdom Company
| US$100.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SG100 Gun
Type
Coating Spray Gun
Coating
Powder Coating
Substrate
Copper
Certification
CE, ISO
Condition
New
Transport Package
Steel Box
Specification
Steel
Trademark
WISDOM
Origin
Shanghai
HS Code
8424909090
Production Capacity
1000000
Product Description
SG100 Plasma Gun Introduction Type SG100 is considered by the industry as a flexible and durable plasma spray gun, which can be used in many applications to output 40KW of energy in the subsonic, Mach 1 and Mach 2 modes.In addition, the SG100 can also provide an inner hole gun configuration to correspond to the requirements of the inner hole coating spraying.
Equivalent: Praxair SG100
SG100 Gun Physical Parameters
| Dimension(mm) | 137*143*175 |
| Weight(kg) | 1.8 |
| Maximum power(kw) | 40 |
| Cooling water flow(LPM) | 14 |
| Cooling water pressure(bar) | 13.5 |
| Cooling water temperature (degree) | 18 |
| Deposition efficiency | <80% |
Customer Value Quality Guarantee; Super cost effective; Experienced industry background; Professional technical consultation; In stock with short delivery time. SG100 gun wearing parts
| OEM No. | Wearing parts Name |
| 895-2083-730 | Nozzle |
| 895-1083A-720 | Electrode |
| 03083-112 | Gas distribution ring |
| 01083A-122N | Front Gun body |
| 01083B-200 | Center Gun body |
| 01083B-205I | Rear Gun body |
| 01083A-108 | Cathode base |
| 2083-123 | Plasma gun cap |
| 5004378 | 90 degree powder feeding tube |
| 7000611 | Screws |
| 7000435 | Screws |
| 7000422 | Set screw |
