3m Hydraulic Access Platform Self Propelled Scissor Lift

Product Description

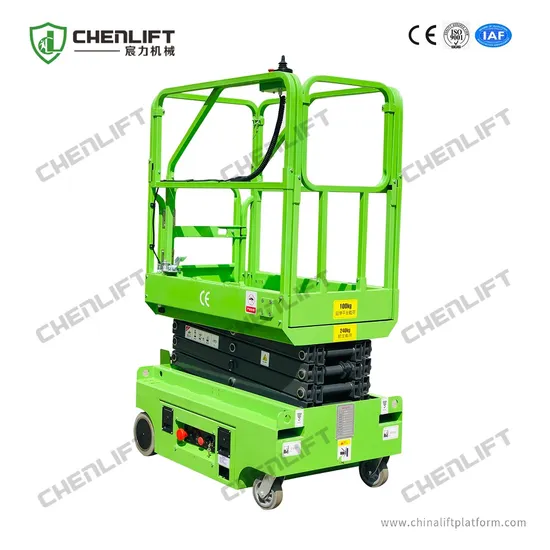

Mini Self-propelled Scissor Lift For Work At Height
Mini Self Propelled Scissor Lift is widely used in warehouse, supermarket and more (the place with narrow space) becuase of its small size. The simple structure make it much easier to operate and maintenance.
It moves and lifts all by battery power. Operator on platform can control lifting, moving, turning and all movement.
Specification

Model	MX300R	MX390R
Load	240 kg	240 kg
Platform Height	3 m	3.9 m
Working Height	5 m	5.9 m
Platform Size	1.15* 0.6 m (No Extension) 1.15* 0.7 m (With Extension)	1.15* 0.6 m (No Extension) 1.15* 0.7 m (With Extension)
Optional Configuration: Extension Platform	Extension Length: 0.55 m Extension Load: 100 kg	Extension Length: 0.55 m Extension Load: 100 kg
Lift/Drive Motor	24v 0.8kw/ 24v 0.3 kw	24v 0.8kw/ 24v 0.3 kw

2 Wheel Type: Swivel Wheel Type and Hydraulic Turning Wheel Type( more easily turning)
Details:
Configuration:
Safety Precaution Auxiliary Lowering Devices Anti-burst System Emergency Stop Button Tilting Protection System Charging Protection System Automatic Braking System Buzzer and Horn Company Introduction
Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.

Certificates
Factory Equipment
Client &Exhibition
Other Related Products
Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Opetion video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
