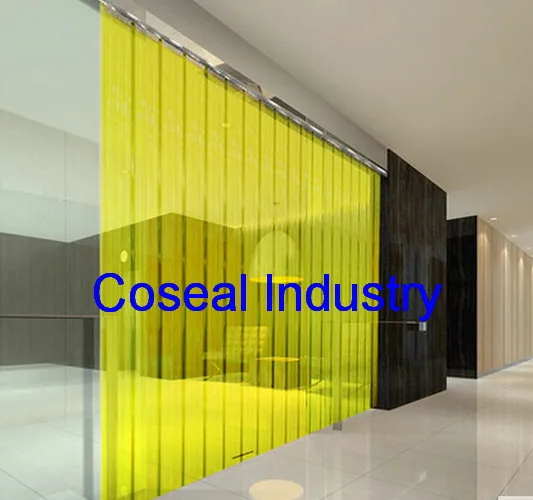

PVC Door PVC Strip Door Transparent Flexible Anti-Instatic Plastic Strip Curtain

Product Description

1) Brief Introduction
They can reduce static electricity from objects or persons, dissipating it back into the atmosphere. For use in Clean rooms, computer component assembly areas, etc. User should determine suitability of this product for it's Intended use.
2) Colors
Light green, Clear etc.
3) Style
Smooth, Single Ribbed and Double Ribbed
4) Standard Sizes
2mmX200mmX50m; 2m
MX300mmX50m;
3mmX200mmX50m; 3mmX300mmX50m; 3mmX400mmX50m
4mmX300mmX50m; 4mmX400mmX50m
Qingdao Coseal Industry Co., Ltd. Is located in the beautiful City Qingdao China, which is one of the biggest PVC strip curtain exporter in Mainland China, is founded in 2002 with total investment of RMB20 million, the company covers a land area of 15000m2 and has 14 sheet extruding production lines. It boasts complete testing equipment, rational formulas for products and advanced technology.
Right now we are professional in following products
PVC strip curtains:
1. Standard PVC strip curtain
2. Polar PVC strip curtain
3. Anti-Static PVC curtain; Anti-Insect PVC curtain
4. Welding Screen
5. Flexible PVC sheet
"Coseal"-One stop shop for "All" of your PVC solutions!
PVC SHEET, TRIP CURTIAN, MAT, PIECE, and FILM, etc.

1.Purpose
1. Used for covering,
2. Used for printing,
3. Used for package,
4. Used as soft glass,

2.The scope of application
Mainly used in the table cloth of table.
Instead of glass windows
Curtain of super-market, factory or restaurants.
To protect your furniture.
3.Characteristics
Easy to clean
Non-toxic, tasteless, green products.
Adapt to the joint of all kinds of plane and crooked surface.
Adapt to the process of all kind of suction.
Product have the performance of heat resistant and wearable.
Able to produce smooth surface, printing surface, grain surface, frosted surface and so many kinds.
Technical Data:

PROPERTY	Standard	Unit	Value
Shore A hardness	EN ISO 868	Sh A	80
Tearing resistance	DIN 53515	N/mm	50
Tensile strength at break	ASTM D 638 EN ISO 527	N/mm²	16
Elongation at break		%	340
Residual elong. (after break)		%	68
Thermal conductivity	ASTM C 177	W/m.K	0,16
Cold bend brittle temperature	ISO 8570	°C	-35
Usage temperature range	EN 1876	°C	-15/+50
Vicat softening temperature	EN ISO 306	°C	50
Specific heat capacity	ISO 11357	kJ/kg.K	1,6
Sound reduction	DIN 52210	dB	>35
Reaction to fire	CFM
Light transmittance	ASTM D 1003	%	85
UV/IR filter	AWS	Filter	-
UV resistance	ISO4892	-	Yes
Charge buildup	IEC 61087	Sparks	Yes
Surface resistivity	IEC 60093	.1012 Ω/	40
Water absorption	EN ISO 62	%	-0,2
Density	ASTM D 792	g/cm3	1,22

Performance Test	Method: B S 2782	Protective Plastic PVC Sheet Formula P.35 Value	PVC strip curtain Super Cold Formula P.45 Value	Unit
Relative Density	DIN 53 479	~1.22	~1.19	g/cm3
Softness A Hardness	DIN 53 505	77	63	-
Brittle Point	DIN 53 372	Approx -35	Approx -45	Degrees C
Falling Ball Test	Internal Test	"-35 No Break	"-45 No Break	Degrees C
Flexibility	DIN 51 949	"-35 No Break	"-45 No Break	Degrees C
Water Absorption	DIN 53 472	17	21	Mg
Tensile Strength	DIN 53 455	17	13	Mpa
Tensile Stress	DIN 53 455	300	420	%
Rupture Resistance	DIN 53 515	>5	>2	N/mm
Reaction to Fire	DIN 53 382	Self-extinguishing	Self-extinguishing	0
Flammability	Based US MV SS 302	Inflammable	Inflammable	0
Airborne Insulation	DIN 52 210	~30 dB	0	0
Light Transmission	-	>80	>80	%

Product	Soft PVC sheet
Size	Length	According to the customers' request
	Thickness	0.1mm-8mm
	Max Width	1.85/2/2.5m
	We can produce other special sizes according to the customers' request.
Color	Transparent, white, blue, red, yellow, and so on.
transparency	transparent, semi-transparent, opaque
Surface treatment	transparent, grinder, single and double sticker, dumb white (black)
hardness shore A	75+/-5
Transmission	crystal clear, >=80%
Grade	New material, ordinary material
Characteristics	- Chemical and Corrosion Resistant - Easily Fabricated or Welded - Cost Effective - Durable and flame retardant - Excellent for outdoor exposure. - Paintable. Weather resistant. - High tensile, compressive, and flexural strength.

FAQ
1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM/ODM manufacturer factory with export license. We have an outstanding and experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.


2. Question : Why choose cooperate with us ?
Answer : -- Right people, Right product, Right price ;
-- Company-wide customer awareness ;
-- Reliable Quality and All components from world leading suppliers ;
-- Cost-effective export infrastructure and total supply chain management ;

3. Question : Where is your factory located ? How can I visit there ?
Answer: With an ISO90001 certified factory located in hebei Province , P.R. China . It takes about 2 hours from BEIJING by car. It is very pleasure for clients to visit us.

4. Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.

5 Question : How can I get some product samples ?
Answer : We are honored to offer you good product samples. New clients are expected to pay for the product sample cost and the international transportation cost. Product Sample cost would be deducted from the customers' next mass production purchase order in future.
6. Question : How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.


7. Question : What is the average delivery time ?
Answer : Most of the time, it would be around 1 week since after confirm receiving customers' contract money. For mass production purchase order at big quantity, the delivery time could be discussed with each other case by case
