Cutting Width 2000 mm 100 HP Grain Combine Harvester

Product Description

Product Description

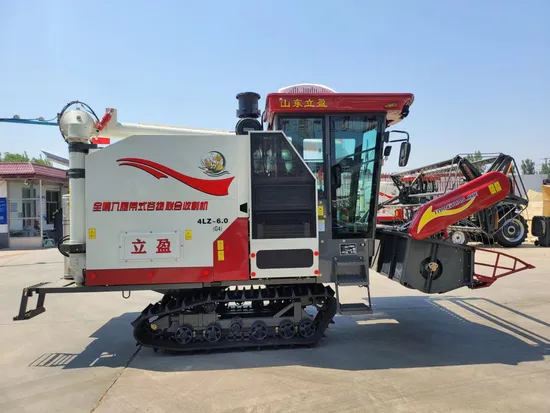

4LZ-6.0 Crawler Self-propelled Full-feed Grain Combine Harvester
High-Capacity grain harvesting in wheat and rice
Designed for performance in coarse grain crops, the new designed rotor and cleaning shoe efficiently thresh and clean grain in tough harvesting conditions. The rotor helps maximize fuel efficiency with technology that reduces the force required to move material through the combine by as much as 20 percent. High capacity starts at the feeder house, where the machine provides large areas of clearance for high volumes of crop to flow uninterrupted.
Truly tough conditions demand more than simple solutions. Rather than slightly improve performance in rice, canola, wheat, barley, oats, or other tough small grains, Liying Combines set new capacity standards with four crucial components: Active Concave Isolation, a high-performance feeder house, heavy-duty interrupter grates with integrated interrupters, and the variable-stream rotor. When you're looking at a storm on the radar and you don't have time to spare, you can run full throttle and still put your toughest crop into the machine without any issues.
The more time you can spend harvesting and the less time spent making adjustments means more daily performance. The Combine offers more convenience from the cab with platform tilt, precision residue, and easy crop changeover when it's time to move fields. Whatever harvest throws at you, you can keep moving with the touch of a button.
The faster you can get to - and into - your fields, the more productive you are. Liying Combines make it easy. Tracks help you get into the field sooner and finish faster. The track system lets you smoothly shift between two speed ranges (field and transport) with the push of a button; you'll no longer have to stop to shift when going up or down hills or when you're exiting a field.
Main Features of price of Liying 4LZ-4.0E paddy mini rice combine harvester: 1.Equipped with turbocharged engine 100HP with stronger power and lower fuel consumption. 2.New 80 series hydraulic gearbox with 40C HST ensures harvester working more smoothly. 3.Rubber track 500x90x53mm brings less ground clearance. 4.The length of threshing cylinder reaches 2250mm, which makes grain less loss. 5.Reverse mechanism is the best solution to solve block of conveyor. 6.Min.Ground clearance reaches 340mm, harvester can work in deep mud fields. Detailed Photos
Product Parameters

No.	Items	Unit	Value
1	Model Name	/	4LZ-6.0 Crawler Self-propelled Full-feed Grain Combine Harvester
2	Structural Type	/	Crawler self-propelled full-feeding type
3	Engine Manufacturer	/	Anhui Quanchai Power Co., Ltd.
4	Engine Model	/	Quanchai 4c6-100 engine
5	Engine Structure type	/	Vertical, in-line, water-cooled, four-stroke
6	Number of engine cylinders	Cylinder	4
7	Engine rated power	kW	73.5
8	Engine calibration speed	r/min	2400
9	Overall Dimensions of the whole machine (length×width×height)	mm	5850×2650×3050
10	Total Weight	kg	3950
11	Working Width of header	mm	2200
12	Minimum Ground Clearance	mm	340
13	Feed Rate	kg/s	6
14	Gearbox Model	/	Type 80 Enhanced gearbox Yunzhou Technology
15	Working Gears	/	3 forward, 1 reverse
16	Working Speed	km/h	0.9~6.5
17	Hourly Productivity	hm2/h	0.27~1.0
18	Fuel consumption per unit workload	kg/hm2	12~30
19	Reel Diameter	mm	900
20	Number of Reel boards	P	5
21	External dimensions of the main threshing drum (outer diameter x length)	mm	¢620×2200
22	Threshing Fan Diameter	mm	¢400
23	Number of Fans	P	1
24	Chain spacing×Number of chains×Width	/	90mm×53×500mm
25	Track Gauge mm 1250	mm	1250
26	Track Specifications	mm	500*90*53 chains
27	Transmission mechanism type	/	Hydraulic stepless transmission (HST) + mechanical gearbox
28	Cab Type	/	Air conditioned cab
29	Grain Unloading Mode	/	Hydraulic automatic grain unloading

Packaging & Shipping
After Sales Service

1.Top Quality Services
Our engineers concentrate on providing you with top quality, both in engineering products and customer service.
2.End to End Services
All of our services, from concept through to sales and commissioning, is managed in-house at our factory.
3. After-sales Service
1. Fast technical guidance for construction, installation and commissioning.2. Necessary training for daily maintenance on site.3. 12 months warranty.4. Lifelong regular technical service.5. Timely solutions to problems.
