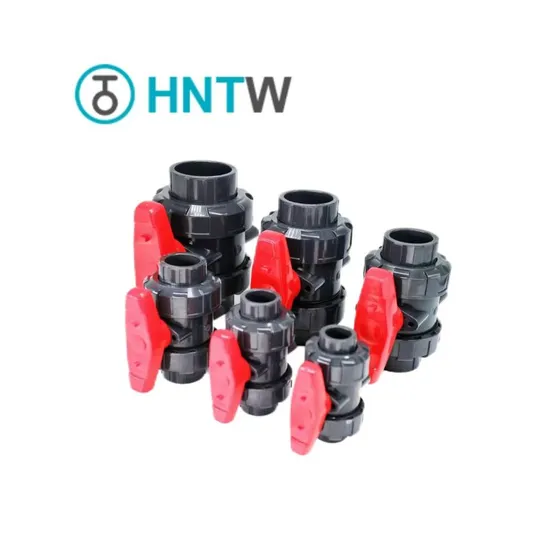

UPVC Ball Valve Socket and Flange Thread for Corrosion Resistance JIS 150psi

Product Description

Product Description Connection: Socket/Threaded
Pressure:PN10Size:DN15-100 1/2"-4" 20mm-110mmSize standard:DIN/ANSI/JIS/BSPT/NPTMaterial:TPE/PTFE(seat), EPDM/FKM(o-ring)
Industrial Upvc Double True Union Ball valves are suitable for use in sewage treatment facilities, swimming pools, the construction industry, etc. Industrial double true union ball valves have higher quality requirements than general union ball valves. The body is very rugged and has good sealing performance. The inner and outer walls are smooth, so the water resistance is small.
We accept personalisation of our ball valve:
1.Logo on the handle
2.Colour of the handle
3.Valve body colour
4.Laser marking
The materials parts of Double True Union Ball valve can be chosen:
The Structure of Double True Union Ball valve:
The DISASSEMBLY DETAILS: A-Pull out the handle
B-Take apart the nuts
C-Turn the seal carrier in an
anticlockwise direction
C1-Take out the Seat&O-ring
D-Push the ball
E-Pick out the ball
F-Press the shaft
G-Pick out the Seat&O-ring
The Drawing of Double True Union Ball Valve:

Due to manual measurement:tolerance:3-5mm(exclude d2)

SZIE	W	H1	H2	L	L1	L2	L3	D	d2(DIN)	d2(ANSI)	d2(JIS)
1/2"	80	52	26.5	96	18	60	53	52.5	20	21.24	22
3/4"	85	58	30	108	22	64	57	60	25	26.57	26
1"	100	68	35.5	119	25	69	62	72	32	32.27	32
1-1/4"	115	82	41.5	137	28	81	70.5	83	40	42.2	38
1-1/2"	125	91	48	157	32.5	92	80	97	50	48.25	48
2"	140	107	58.5	172	38	96	86	117	63	60.3	60
2-1/2"	195	141	74.5	233	49	135	123	146	75	73	76
3"	225	156	84	289	62	165	148	167.5	90	88.9	89
4"	250	177	94.5	315	71	173	157	193	110	114.3	114

Application
The Application for our Double True Union Ball Valve:
1. Sewage treatment equipment
2.Chemical dosing device
3.Ultra-filtration membrane chemical cleaning
4.Swimming pool
5.Ordinary water supply equipment (with pressure requirements)
6.Electroplating industry
(Suitable for medium and fluids with low to medium corrosivity)

The workshop Display:
Our Service
Our Service:
1.We are manufacture of UPVC/CPVC/PPH Valves and Pipe fittings and we can offer OEM service.
2.We supply all themoplastic valves as you can find on the market and offer one-stop service.
3.We supply DIN,ANSI,JIS standard for Valves and supply DIN and SCH80 standard for pipe and pipe fittings.
4.We can provide personalised and customised products.
5.We are welcome you come to visit our factory.
Our Advantages
Our Advantageous:
1.Our prices are more favourable for products of the same quality.
2.We are very quick to respond and can give you a very efficient service.
3.Provide technical guidance from a professional perspective.
4.Production can be done efficiently with quality assurance.
5.Our factory is highly automated and mechanised.
FAQ
Our Payment Method:
1.T/T: Start to producing after received 30% Pre-payment and dispatch all the materials to the forwarder after received the 70% payment.
2.Other payment methods can be negotiated on a case-by-case basis.
MOQ:
1.normal products are in stock and there is no MOQ.
2.Customised products are evaluated according to the requirements of the product
