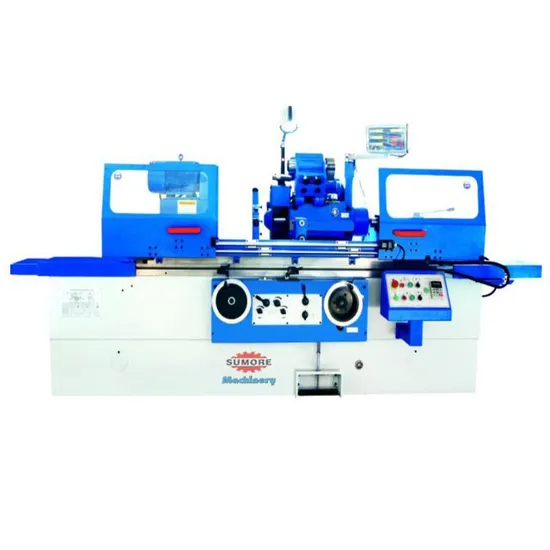

Universal Grinder Precision Sumore 500mm/800mm China Machinery Cylindrical Grinding Machine

Product Description

Product Description
SP2517 Universal metal cylindrical grinding machine cylindrical grinder machine Precision Surface Grinding Machine Price / Surface Grinder Machine high precision magnetic chuck available manual surface grinder grinding machine Small manual surface grinder machine surface grinding machine Factory vertical surface grinders surface grinding machine manufacturers metal hydraulic surface grinder machine belongs to most popular economic manualsurface grinder machine. It is small in size and delicate in design. This surface grinder machine is made in China, but with same quality of Japan surface grinder. The main features are as below
Adopt the exceeding precise class7 (P4 level) ball bearing for spindle. Surface Grinder(hydrulic grinding machine) is a good quality metal surface grinding machine, which is made in China, but have similar quality as Japan surface grinder. It has good design and high quality.
Quick details
1.Center height:135mm
2.Max grinding length:500/800mm
4.Power:5.625KW
5.Grinding wheel:MaxΦ400×50×Φ203 MinΦ280×50×Φ203mm
Featurs/Advantages
1. When conical grinding, the table can be swivelled to either side and exactly positioned by using the scale.2. Oil film between bearing and spindle keeps vibrations ata minimum level, hence achieving outstanding results and top accuracy.3. Precisely balanced spindle head and solid grinding head guarantee extraordinary results at any type of operation.4. Strong reinforcements and solidly designed panels of the machine base makes it resistant to temperature fluctuations and deformations.5. Spindle is mounted from both sides and features adjustable sliding bearings consisting of three segments.6. Hydrodynamic bearing of spindle, therefore no contact between spindle and bearing.7. Longitudinal table feed can be set to automatic mode -hydraulically driven or manual mode - by handwheel.8. Stepless feed adjustments with the option of aprogrammable hold time at the end of each table movement.9. Hydraulic or manual repositioning of grinding spindle stock.10.Guideways in x- and y-axis are precisely constructed and hand-polished.11.Longitudinal table guide and cross guide of grinding headstock each feature a V-guide and flat guide.

MODEL SP2520 External Grinding diameter (O.D)mini/max(with steady rest) 8/60mm External Grinding diameter (O.D) min/max (without steady rest ) 8/200mm Max.workpiece weight 50kgs Grinding length External 500/800mm Center height 135mm Distance between centers 500/800mm Grinding wheel size (O.DxWxI.D) MaxΦ400×50×Φ203 MinΦ280×50×Φ203mm Max peripheral speed of grinding wheel 38m/s Wheelhead spindle speed 1670rpm Wheel head rapid advance&wighrawal 50mm Total motor power 5.625kw Overall dimension(IL*W*H) 2500/3000*1600*1000mm Machine weight 2500/3000kgs
