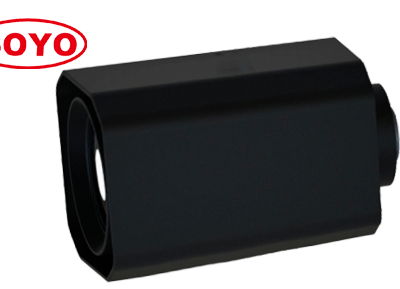

28-128mm 1.1" 12Megapixel Motorized Zoom Lenses Security Surveillance CCTV Lens Camera Optics ITS LPR Liscence Plate Recognition Industrial IR DC /3 Motors / P-iris C Mount NIR China Lentz
PDF Datasheet : S11MZ28128PIR-12M
High resolution: 12 megapixel covering 4K, 1080P
Suitable F. length: 28-128mm making up short distance surveillance.
Big aperture: F2.5 suitable for dark vision
Large format: 1.1" large format covering all 1",1/1.7",1/2"
Compact size : Compact small size lens for special application.
Optional Iris : P-iris & 3 motors, DC iris for option
Application: Highway,train, industry, power station, city surveillance
Model
| S11MZ28128PIR-12M
|
Resolution
| 12 Megapixel
|
IR Corrected
| IR
|
Format
| 1.1"
|
Focal Length
| 28-128mm
|
Aperture (Close/360)
| F2.5 P-Iris
|
Angle of View (°)
| 1.1" IMX428
| W: 32.3*26.5*18.1 T: 8.5*7.1*4.9
|
1" IMX305
| W: 29.5*25.9*13.6 T: 7.8*6.9*3,7
|
1/1.2" IMX485
| W: 23.5*20.4*11.4 T: 6.3*5.5*3.1
|
M.O.D
| 3m(W) ~ 5m (T)
|
Distortion
| -4.3%-1.7%@1.1”; -2.1%-0.9%@1/1.2”
|
Relative illumination
| 42%@Φ12.8mm (W);40% Φ12.8mm (T)
|
C.R.A
| 1.9° Tele;3.0° Wide
|
Dimension
| Φ80*85*144.8mm
|
B.F.L
| 12.02mm
|
M.F.L
| 13.526mm
|
Mount
| C
|
Weight
| 500g
|
Relative Illum
| 45% Wide Φ8.8;40% Tele Φ8.8
|
Character
| Coating 400~900nm;-30°~+70°
|
