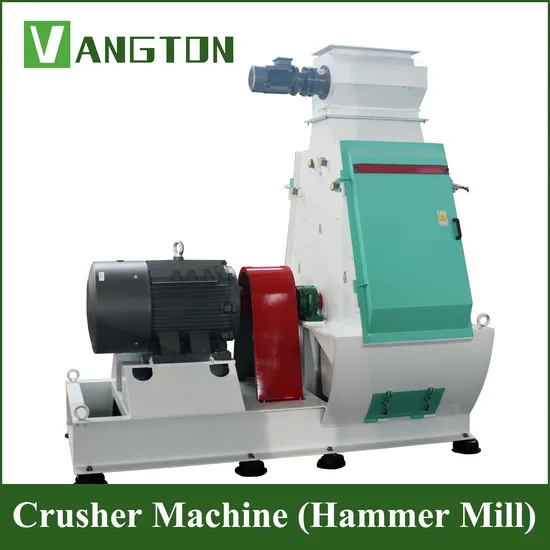

Livestock Feed Hammer Mill for Feed Pellet Plant

Product Description

Hammer mill is widely used in fodder factories, cultivation factories, and organic fertilizer factories. It can be used in producing Chinese medicine, chemical industry and in other areas. Hammer mill can grind all kinds of materials of pellet wood - stalk, wood chips, nut shell, straw, rice husk and so on.

Model	Capacity t/h	Main Power	Fan Power	Air-lock	Cyclone	Dust Collector
65x35	0.6-0.8	22kw	5.5kw	1.5kw	Ф800	1.6-9
65x55	0.8-1.2	37kw	7.5kw	1.5kw	Ф800	1.6-9
65x75	2-2.5	55kw	11kw	2.2kw	Ф1000	1.6-16
65x100	2-3.5	90kw	15kw	2.2kw	Ф1000	1.6-20
1500	4-6	90kw	22kw	2.2kw	Ф1400	2.0-25
Others	Please confirm with our sales staff
Material	Maize, Corn, Seed, Bean, Stalk, wood chips, nut shell, straw, rice husk, banboo chips, paper, leaves, waste wood, agriculture waste, wood shavings, sawdust
Usage	Hammer mill is widely used in fodder factories, cultivation factories, and organic fertilizer factories. It can be used in producing Chinese medicine, chemical industry and in other areas.

Raw material is placed into the feeding hopper, which leads to the hammer chamber where the material enters from the top and is beaten and crushed (hammered) by high speed rotating blades. Under centrifugal force the material is processed quickly due to continuous squeezing, crushing, and beating, by the hammer mill blades. Under rotor centrifugal force, fan suction force, and gravity crushed material and air is discharged through the holes in the 180 degree screen on the bottom while those that cannot get through will repeat the process until they are small enough to pass through the screen into the lower body of the hammer mill.
Advantage of Hammer Mill
1.Can design the vertical or horizontal hopper for your specific requirement.
2.Rotor structure. It ensures no dead corner inside and makes the finish products evenly.
3. Multifunctional. hammer mill can handles fertilizer,animal food and biomass material Security lock. To ensure the doors will not open during operation.
4.The hammer mill usually works with cyclone; the cyclone can filter out the dust from finished products.
5.A variable frequency drive could be installed on the belt conveyor to hammer mill, so you can adjust the right speed for the material.
OUR PROJECTS
OUR CERTIFICATE
THE CLIENTS WITH US
Features:
1. It is used for grinding raw materials by large and medium livestock and aqua feed mills. It can also be used for grass and pharmacy fine grinding. The granular raw materials, such as corn, sorghum, wheat, beans, etc can be grinded;
2. It is derived from tear circle type hammer mill and efficiency can be improved by 45%-90% comparing to universal hammer mill;
3. It can produce qualified aqua feed under full load with 0.8\1 screen and reduce jam significantly. Both coarse and fine grinding can be realized without changing screens;
4. The right aspiration can make materials go through screen quickly, reduce temperature of grinding chamber and increase output effectively.
Multifunctional wood hammer mills are our company specializing in the production; the machine uses hammer hit screens to get the goods. According to the proportion of materials and output to choose type of machine.
Multifunctional Wood Hammer Mill is our finalize the design products , it is a best machine to crush kinds of straw , weeds , PVC foam board, rubber, plastic etc. So could be called straw hammer mill, wood hammer mill, rice husk hammer mill, cotton stalk hammer mill, PVC hammer mill.
OUR SERVIC
Pre-sale service
1.Our professional and experienced engineer team helps every client to find his most suitable equipment or chose of plant.
2. Any kind of legal logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
After you choose:
1. We will make drawing and show you how the pant looks.
2. Every equipment will be checked carefully before packing. Video on machine testing is available.
3. Email you the tracking no., and help to chase the container until it arrives you.
After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.
FAQ
Q. what is your payment term?
A: T/T 30% down payment, balance to be paid before shipment.
Q: what is your main market?
A: South America, Eastern Europe, Southeast Asia, Africa, Oceania, Eastern Asia
Q: what is your producing time?
A: Producing time depends on that machines you ordered. Usually takes 45 days.
Q: what documents you can offer?
A: We can offer invoice, packing list, contract, instructions, customs declaration, certificate of origin, CE. If client need other documents, specifications, please confirm with service staff.
Q: If equipments have some quality problem, how would you deal with?
A: We will responsible for all the quality problems. We will check the machine to get the problem. If need parts, will send them to you.
Q: how to install the equipments?
A: We send 1-2 engineer (100usd/person/day) to the local plant for helping install and commissioning equipments. To save time, our service stuff will tell you what to prepare in advance. We can also teach the workers to how to use the machines and how to make the products better.
