Stainless Steel Filter Cartridge Housing Filtration Solutions 304/316L/2205/Ti
| US$100.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LW-W1L1, LW-W5L2
Motive Force
Pressure
Style
Tube
Performance
Efficient Filtration
Effective Filtration Area
0.6-300m2
Overall Height
300-1500mm
Materials
SS304,SS316L,2205,Ta2
Diameter of Cartridge
69mm
Length of Cartridge
5"/10"/20"/30"/40"
Transport Package
Wooden/MDF Panel Carton
Specification
600*600*1600mm
Trademark
LWFE
Origin
China
HS Code
8421299090
Production Capacity
2000/Year
Packaging & Delivery
Package Size
60.00cm * 60.00cm * 100.00cm
Package Gross Weight
100.000kg
Product Description

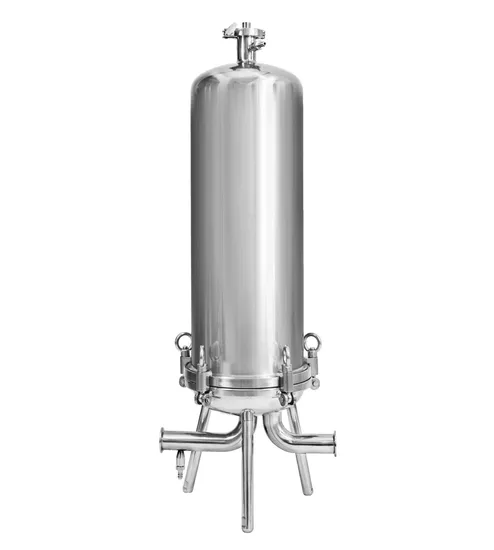

A type of precision filter housings that can accommodate multiple filter cartridges. Its material can be SS304, SS316L, 2205, titanium, etc., and the inlet and outlet can be threaded interfaces, quick-connect clamps, flange interfaces, etc.; According to the difference in filtration capacity, it can be Choose filter cartridges of different lengths such as 5 inches, 10 inches, 20 inches, 30 inches, 40 inches. The filter cartridges mainly include PP melt blown filter cartridges and Pleated filter cartridges. The material of the Pleated filter cartridges can be PP, PPS, nylon, PTFE, etc., Pleated filter cartridge interface Optional flat head, 222 interface, 226 interface, threaded interface, etc.Common products parameters:
| Model | Cylinder Diameter | Overall height | Length of filter cartridges | Qty of filter cartridges | Average filtration velocity | Inlet/Outlet |
| LW-W1L5 | φ89mm | 445mm | 5" | 1 | 0.25 m³/h | 1" |
| LW-W1L1 | φ89mm | 570mm | 10" | 1 | 0.5 m³/h | 1" |
| LW-W1L2 | φ89mm | 820mm | 20" | 1 | 1 m³/h | 1" |
| LW-W3L2 | φ170mm | 800mm | 20" | 3 | 3 m³/h | 1/2-2" |
| LW-W5L3 | φ200mm | 1250mm | 30" | 5 | 7.5 m³/h | 1/2-2'' |
| LW-W5L4 | φ200mm | 1500mm | 40" | 5 | 10 m³/h | 1/2-2" |
| LW-W7L3 | φ250mm | 1300mm | 30" | 7 | 10.5 m³/h | 1-2" |
| LW-W7L4 | φ250mm | 1550mm | 40" | 7 | 14 m³/h | 1-2" |
| LW-W11L3 | φ300mm | 1380mm | 30" | 11 | 16.5 m³/h | 1-2" |
| LW-W11L4 | φ300mm | 1620mm | 40" | 11 | 22 m³/h | 1-2" |
| LW-W15L3 | φ350mm | 1580mm | 30" | 15 | 22.5 m³/h | 1-2" |
| LW-W15L4 | φ350mm | 1830mm | 40" | 15 | 30 m³/h | 1.5-2.5" |
| LW-W20L3 | φ400mm | 1630mm | 30" | 20 | 30 m³/h | 1.5-2.5" |
| LW-W20L4 | φ400mm | 1880mm | 40" | 20 | 40 m³/h | 1.5-2.5" |
| LW-W27L3 | φ450mm | 1680mm | 30" | 27 | 40.5 m³/h | 2-3" |
| LW-W27L4 | φ450mm | 1930mm | 40" | 27 | 54 m³/h | 2-3" |
| LW-W30L3 | φ500mm | 1740mm | 30" | 30 | 45 m³/h | 2-3" |
| LW-W30L4 | φ500mm | 1990mm | 40" | 30 | 60 m³/h | 2-3" |
| LW-W36L3 | φ550mm | 1780mm | 30" | 36 | 54 m³/h | 2.5-3" |
| LW-W36L4 | φ550mm | 2030mm | 40" | 36 | 72 m³/h | 2.5-3" |
| LW-W40L3 | φ600mm | 1850mm | 30" | 40 | 60 m³/h | 2.5-3" |
| LW-W40L4 | φ600mm | 2100mm | 40" | 40 | 80 m³/h | 2.5-3" |
| LW-W50L3 | φ650mm | 1880mm | 30" | 50 | 75 m³/h | 2.5-3" |
| LW-W50L4 | φ650mm | 2130mm | 40" | 50 | 100 m³/h | 3-4" |
| LW-W60L3 | φ700mm | 1900mm | 30" | 60 | 90 m³/h | 3-4" |
| LW-W60L4 | φ700mm | 2150mm | 40" | 60 | 120 m³/h | 3-4" |
| LW-W75L3 | φ750mm | 1950mm | 30" | 75 | 112.5 m³/h | 3-5" |
| LW-W75L4 | φ750mm | 2200mm | 40" | 75 | 150 m³/h | 4-6" |
