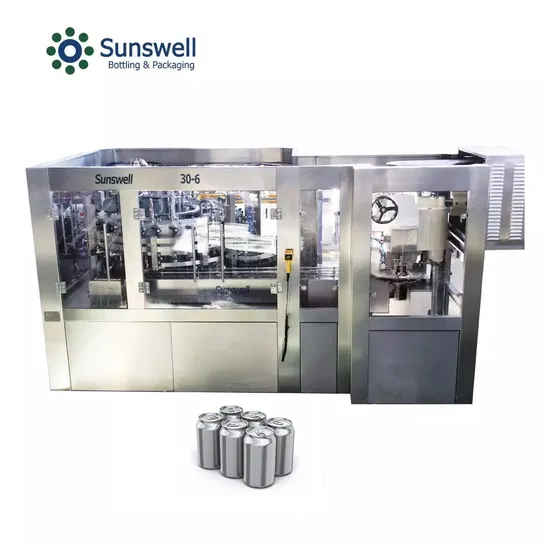

Tunkey Bottle Tin Can Soda Water Soft Drink Sparkling Liquid Bottled Beverage Juice Energy CSD Carbonated Bottling Filling Capping Production Line Machine

Product Description

1.General Description The series equipment is used in producing all kinds of soda drink contained with polyester with bottle.Washing ,filling,sealing
can carried out on the same machine.The design of the machine is scientific and reasonable.
2. Features
1.Compact structured, good-looking, easy to operate and highly automated.
2.Parts with contact with material are all made of stainless steel of food-grade, no dead angles and easy to clean up.
3.Filling volume is controlled with film valves to ensure accurate filling.
4.Liquid buffer element specially designed inside filling valves can eliminate the cutting affection and wallop between liquid and container, easy to eliminate the air bubble in material.
5.Capping heads are magnetic constant-torque equipped to ensure capping quality with no damage.
6.Equipped with overload system to safeguard machine and operators.
7.Equipped with cap absence detector and bottle jam-up detector, which could stop the monoblock in that case.
8.Equipped with output calculating function for monoblock.
9.Main electronic components (touch screen, PLC and frequency inverter) are imported products.

MODEL	DGF30/6
NUMBER OF STATIONS	FILLING 30,CAPPING 6
CHAIN SPACE	171.4mm
Nominal capacity	150CPM(355ml/)
FILLING PRESSURE	0.25-0.4Mpa
FILLING TEMPERATURE	0-4ºC
CANS	A variety of easy open two-piece and three-piece cans
	CANS DIAMETER φ53-φ66;CANS HEIGHT 70-165
AIR SOURCE PRESSURE	0.4-0.5Mpa
CO2CO2 CONSUPTION	8Nm3/h
COMPRESSED AIR CONSUPTION	0.5Nm3/h
CANS CONVEYOR HEIGHT	1200mm
POWER	3Kw
OVERALL DIMENSION	3200×2150×2290(××) (L×W×H)
WEIGHT	3000Kg

About Sunswell:Set up in 2008, Sunswell leads the market in the field of liquid bottling, blow molding, labeling, packaging machinery and process technology for water, tea, juice, carbonated drinks, energy drinks, liquid, beer, edible oil, dairy and daily care products, etc.
We can customize liquid food production lines according to customers' demand. Every customer is the result of our proven experience and innovation. We continually focus on providing customers with advanced technology, engineering and facility that are designed with one motto in mind: ensure you to reach business goals with most optimized planning.
Why choose us?
(1)A to Z turnkey plant provider
(2)Fully automatic or economic solution optional
(3)10+ years of global market experience
(4)Serve customers over 50 countries and regions worldwide
Exhibitions:Sunswell,as an professional liquid filling and packing machine manufacturer,we often have chance to go out for exhibition to show our beverage filling machines and communicate processing technology with other industrial colleagues.
Service: Spare Parts / Maintenance, Installation & Commissioning / Training No matter whether you're a newcomer or a sectoral expert - we have the specialists who can provide the comprehensively can-do support you need for planning a new facility in terms of not only actual beverage production, but also filling, packaging, utilities and logistics. In closely responsive consultation with you, from a multiplicity of possible options, we select the technologically and commercially most effective variant, handle the design and planning work, and bring the project to a successful conclusion at your chosen location. Sunswell is not only the consultant here, but also takes responsibility for executing the entire project.
FAQ:
Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.
Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.
Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.
Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed. Or you can arrange engineers to study in our factory.
You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.
Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.
Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units to save international courier such as DHL, it is really costly.
Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.
Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.
Tailor Made:
Web: sunswell.en.made-in-china.com
Any questions please feel free to contact me !
