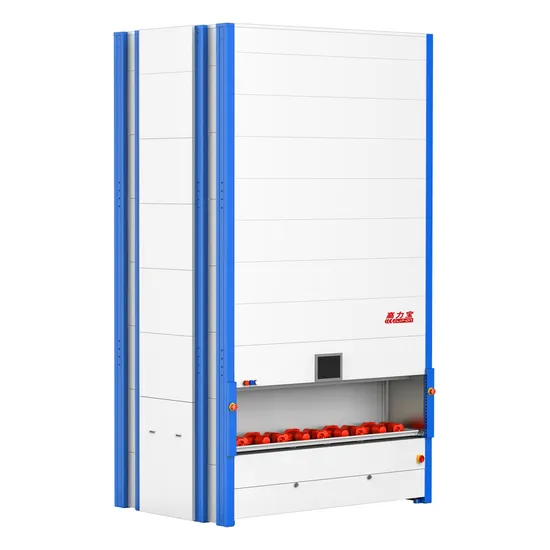

Automated Racking Warehouse Automation System Vertical Lift Module

Product Description

DESCRIPTION VERTICAL LIFT MODULE
Model: GSJ250 / GSJ500 / GSJ700 ADVANTAGE
1. Save up to 85% of warehouse floor space
2. Increase labor productivity by approximately 70%
3. Significantly improve the accuracy of goods receipt and delivery
4. Better and safer storage of goods
5. Humanized design for greater operator safety
6. Optimized storage and retrieval of goods
7. 24/7 high reliability
SPECIFICATION

Model	GSJ250	GSJ500	GSJ700
Width	1633 - 4033 mm
Depth	2421 / 2707 / 3090 / 3374 / 3755 / 4326mm
Height	2850 - 20000 mm
Equipment Height Increment	100 mm unit increments
Performance Data
Vertical Speed	Adjustable, up to 1.2 m/s
Storage/Sorting Speed	Adjustable, up to 0.7 m/s
Total Load	Maximum 67/120 tons
Tray Depth	632 / 726 / 856 / 950 / 1076 / 1265mm
Pallet Height	50 / 70 mm		120mm
Pallet Length	1250 - 3650 mm
Storage Space Spacing	25 mm
Tray Space	75 mm (minimum value)
Load	300 kg	550 kg	725 kg

CASE
FEATURE Compact design to maximize floor height Direct access to the operator Sorting indicator Lockable cabinet doors Software support for password protection and operational process traceability Security curtain for cargo reporting and emergency security shutdown Ergonomic design of picking ports PRODUCTION
ABOUT US
Clip-on (Jiangsu) Technologies, Co., Ltd. Was established in 2008. The company's R&D and production headquarters is located in Lianhu Industrial Park, Danyang City, Jiangsu Province. It is 4.5 kilometers away from Danyang West Exit of Shanghai-Chengdu Expressway and 6.5 kilometers away from Danyang Station of Intercity High-speed Railway. The transportation is very convenient.At the beginning of the company's establishment, it was an enterprise that sold industrial accessories, consumables (MRO) and special mechanical and electrical products, research, development, production and sales. Products are exported to Europe, America and Southeast Asia.In order to cater to the development trend of Industry 4.0, solve storage and management problems for our customers, and provide personalized services, the company established an intelligent storage research and development team in 2015, dedicated to the planning, design and development of intelligent storage equipment and modern and efficient internal logistics solutions Manufacturing, serving intelligent manufacturing with intelligent manufacturing, and jointly realizing China's industrial upgrading is our mission.Our main products are intelligent lifting cabinets, intelligent horizontal rotary cabinets, intelligent vertical rotary cabinets, intelligent distribution combination management warehouses, intelligent combination packaging warehouse sales warehouses for various materials, materials and parts, which are widely used in mechanical and electronic manufacturing, pharmaceutical and chemical industries, food and beverage, new energy, energy and electricity, mining and metallurgy, infrastructure, public health, wholesale and retail, etc.
QUALITY ASSURANCE AND SERVICE
1. Have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., and double check is a must.
4. Advanced factory facility ensure
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. on time delivery, as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service
Welcome to your inquiry!
