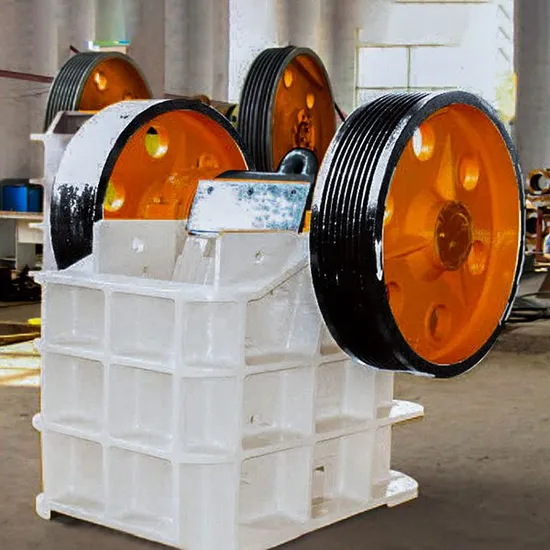

Jaw Crusher Price Small Diesel Engine Jaw Crusher Machine for Limestone Gypsum

Product Description

Jaw Crusher Price Small Diesel Engine Jaw Crusher Machine For Limestone Gypsum
Product Introduction:
PE, PEX Jaw Crusher are ideally suitable for primary and secondary crushing, with low power consumption and easy maintenance. Every feature of these crushers has been carefully designed to provide superior quality and performance. The jaw crushers are widely used for crushing various materials like stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, lime stone, quartzite, alloys, etc. These crushers are recommended by leading consultants in this field and are used by hundreds of customers all over the world.
Features and Benefits:
Product application:
PE, PEX Jaw crushers are widely applied in areas of mining, metallurgical, construction, smelting, hydraulic and chemical industries, etc. The series with 11models which can meet most capacity requirements in primary(PE Series) and secondary crushing( PEX Series).
Working principle:
The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moving. So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.

model	Size of feed opening	Max feed size	Discharge range opening	Capacity (m3/h)	Motor power (kw)
	(mm)	(mm)	(mm)
PE-250x400	250x400	210	20-60	3-15	15
PE-1000x1200	1000x1200	850	195-280	190-275	110-132
PE-1200x1500	1200x1500	1020	150-300	250-500	160
PEX-150x500	150x500	120	10-40	3-13	11
PEX-300x1300	300x1300	250	15-50	20-60	75

Large capacity and low price rock jaw crusher with good quality
PE Series jaw crusher is typically used as primary and secondary crushing in a crushing production line, which has characteristics as follow: large reduction ratio, even final size, simple structure, reliable working condition, easy maintenance, low operating cost and so on. Jaw crusher is widely used in mineral, smelting, construction, high-way, railway, water conservancy, chemical industry and others. These models have the ability to crushing varies materials with less than 350Mpa.
Advantages & Characteristics
1. Short toggle plate
2. Lower hanging
3. Big swing angle
4. Long useful life
5. Easy maintenance
Our service:
Training & Service
Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment, according to your special demand.
Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with you. We will provide you with the most suitable products with the reasonable price.
