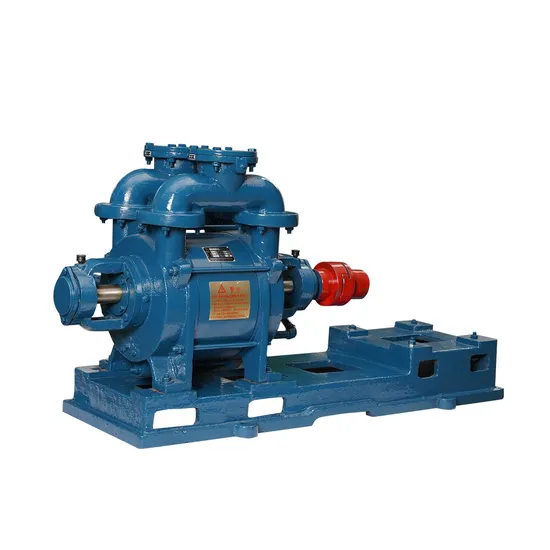

Low Pressure 380V Stainless Steel 2 Stage Water Liquid Ring Vacuum Pump

Product Description

Low Pressure 380V Stainless Steel 2 Stage Water Liquid Ring Vacuum PumpProduct Description
Mainly used to remove air and other gases that are corrosive, insoluble in water, and may contain a small amount of dust. Widely used in vacuum evaporation, concentration, feeding, dehydration, drying and other processes in industries such as food, textile, pharmaceutical, and chemical. This series of pumps has the characteristics of compact structure, reliable use, easy installation and disassembly, and simple maintenance.
Product Parameters

Model	SK-1.5	SK-3	SK-6	SK-12	SK-20	SK-30
Pumping speed(m³/min)	1.5	3	6	12	20	30
Ultimate pressure(Pa)	6700	6700	6700	6700	6700	6700
Nominal Motor speed(rpm)	1430	1450	1460	980	740	740
Nominal Motor current(A)	8.8	15.4	30.1	44.7	77.8	111.2
Pumping size(mm)	1105X400X405	1315X460X525	1580X600X630	2052X430X857	2345X720X1100	12670X780X1100
Weight (with oil filling)kg	180	275	450	900	1940	2340
Type of protection(IP)	55	55	55	55	55	55
flow of supiying water(m³/h)	10~15	15~20	25~35	40~50	60~80	70~90
Motor Voltage/motor base frequency(V/Hz)	380/50	380/50	380/50	380/50	380/50	380/50

Detailed Photos
More Products
Company Profile
Wuxi Sifang Vacuum Equipment Co., Ltd. specializes in the production of vacuum furnaces, vacuum pumps, steel drums and other products."Sifang" is the registered trademark of the company's products.
our company is one professional vacuum equipment manufacturer in Wuxi, China. We specialize in vacuum pumps, furnaces, systems and components for diverse applications. We produce rotary vane vacuum pumps, water ring vacuum pumps, reciprocating vacuum pumps, roots vacuum pump units, vacuum heat treatment furnaces, vacuum aluminum brazing furnaces, high temperature brazing fur- naces, vacuum sintering furnaces, monocrystalline silicon furnaces and other products. All these vacuum equipment are widely used in aviation, aerospace, military, railway, automobile, machinery, mold, electronics, metallurgy, scientific research and other fields.
We have professional engineer support, high efficiency sales team and competitive price superiority, and attract customers from all over the world, we export to over 40 countries, including Europe, Poland, Serbia, Turkey, Russia, USA, Mexico, Brazil, India, Thailand, Middle east and South Africa.
After several years' development, We have achieved great progress, we are equipped with the AutomaticCNCmachines and multi-func- tion testing machines. Our R&D department provide the strong tech- nical support and enable us to receive some 0 E M, O D M projects. We can produce at least 3000 sets vacuum equipment per year. With our innovative and energy-efficient vacuum equipment that is put to work in a multitude of manufacturing and process applica- tions, we also offer you a comprehensive suite of aftermarket ser- vices to complement our products.
