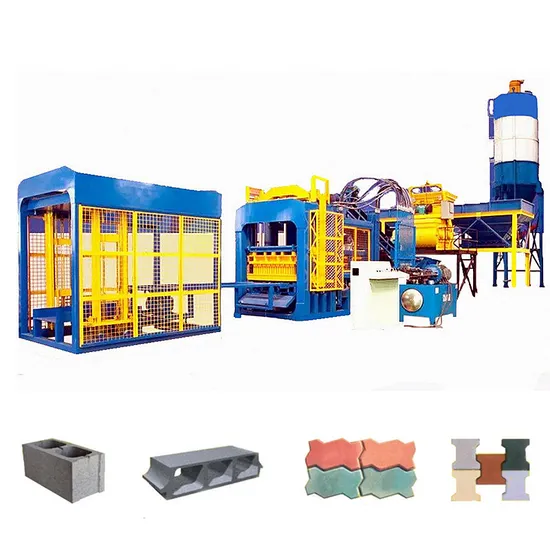

Qt12-15 Interlocking Brick Making Machine Eco Brick Paving Brick Making Machinery with Curing Room with Curing Rack Widely Use in Libya

Product Description

Name: QT12-15 Automatic Hydraulic Block Making Machine QT12-15 fully automatic interlocking block machines brick making machine automatic paver block making machine
-- The QT12-15 block machine will convert the excess oil liquid in the pressurized time to the vibration force, and the computer will control the directional vibration, frequency conversion, braking and cancle vibration energy consumption.
-- Block molding machine low-frequency charging, high frequency vibration, mould and table vibration make concrete fully liquefied in 2 to 3 seconds, exhaust, so as to achieve high density, high strength, especially suitable for production of high-strength blocks,can be stacked after forming.
-- QT12-15 block molding machine is made from the photoelectric control host, which can be sent out of the material in time and avoid the influence of the remaining vibration, and some of the concrete is liquefied in advance.
-- The feeding hopper is equipped with oscillating feeding device, and the material is fed into the mould box by adjusting the swing fork. Imported electrical appliances, hydraulic components make the control, hydraulic two systems basically do not fault operation;QT12-15 Block Machine Complete Line At Site
We provide complete technical support, including site planning, installation guidance, technical training and after-sales service.
Detailed Photos
Electrical component brands
We use high-quality electrical components to ensure stable and efficient operation of the machine

MAIN SPECIFICATIONS
Dimension of host machine	3800x2500x3550 mm	Host machine power	56.2kw
Weight of host machine	13.5T	Vibration force	100-130KN
Water consumption	20Ton/day	Pallet size	1400×900×30mm
workshop area	300m²	Voltage	380/415/440
Mixer model	CMP1000	Molding area	1350×840mm

Material and Brick type
automatic hydraulic fly ash brick making machine/paver block making machine price/concrete block making machine manufacturers

This is the most popular proportion in making block making machine: 1. Standard concrete block: Cement 9-12%, sand 40%, stone 45%, water 3% 2. Light concrete block: Cement 9-12%, slag 80-90%, water 3% 3. Cement 9-12%, sand 10-20%, stone 30-40%, slag 25-50%, water 3% 4. Cement 8%-10%, sand 30%-40%, stone 50%-60% 5. Cement 8%, sand 60%, Fly ash 30%, gypsum 2%.
Finished brick
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our services
Pre-Sales Service
* Inquiry and consulting support. * Sample testing support. * View our Factory
After-Sales Service
* Training how to install the machine, training how to use the machine. * Engineers available to service machinery overseas. Customer praise
