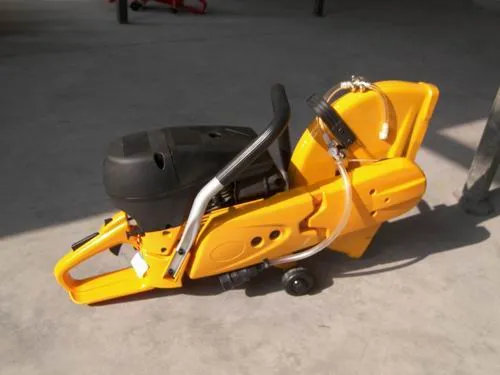

350mm Cut off Machine/Cut off Saw

Product Description

HIGH QUALITY 350mm Portable CUT OFF Machine
Portable Cut off machine is widely used in municipal construction, disaster relief, public security broken demolition, road and bridge construction, housing demolition, garden operations, electric power repair and other motor and field operations. Can bring water environmental protection operations.
The total weight of 9.8 KG, easy to operate. The machine has been CE and the United States EPA certification.
By changing different types of saw blades, cement, asphalt, metal (aluminum, iron, copper, stainless steel, etc.) can be cut. The use of special support, can be converted into hand-push road cutting.
Specification Date

Model No.	DH65
Power Type	Two-Stroke
Displacement	65CC
Power	3.5KW(4.8HP)
Speed	9500-10200rpm
Blade No-Load Speed	5000-5100rpm
Outer Diameter	14"/350mm
Arbor Size	1"(25.4mm)/7/8"(20mm)
Depth of cutting	5"(123mm)
Packing Size	28-1/2"(725mm)X17"(436)mmX10"(252mm)
Net/Gross Weight	21.56LBS(9.8KG)/26.18LBS(11.9KG)
20' Container	360units
40' Container	720units

Our steel alloy piston ring is coated with "PCVD" (a latest scientific "State of the Art" technology creates a hard wear resistant, low friction film) while our cylinder is coated with a hard durable ceramic coating. Together they reduce friction and form a clean burning system that generates more power, while ensuring longer life. In addition to these features our "HEMI" head design makes this saw the most powerful in its class.

Well Balanced		Efficient
Ergonomically and user friendly designed		High Efficiency 3 Stage Air Filtration System
High Performance		Precision engineered Carburator and Fuel Filter
Advanced engineering design dampens vibration		Technologically advanced Digital Ignition
Poly-V-Belt generates maximum torque transfer		Reliable and easy start-up decompression system
Accepts 12" and 14" blades with 20mm-1" arbor		Anti slip flange transfers power with maximum torque
Designed for tough applications in: Concrete, Masonry, Asphalt, Stone, Steel and Ductile Iron		Environmentally friendly: gas tank vapors are burned instead of being released into the air
Low emission and excellent fuel economy		Advanced exhuast design reduces noise and emissions
Enlarged, protected trigger area allows operator to wear gloves		Front rollers lessen operator fatigue and aid in cutting
Durable		Easily adjustable blade guard for any angle work
Precision engineered Cold-Forged Steel Shaft		Upright and enlarged fuel port for easy fueling
Convenient and Sturdy Starter System		Lightweight
Sealed Clutch and Shaft Bearings		Innovative design reduces weight: Magnesium alloy frame and cutting arm with an aluminum alloy blade guard
"PCVD" coated piston ring guarantees less friction		Weight 22 Lbs: Eliminates operator fatigue
Ceramic coated cylinder is protected against heat		Standard Equipment
		A pair of protection glass, a pair of eye plug, a tool
