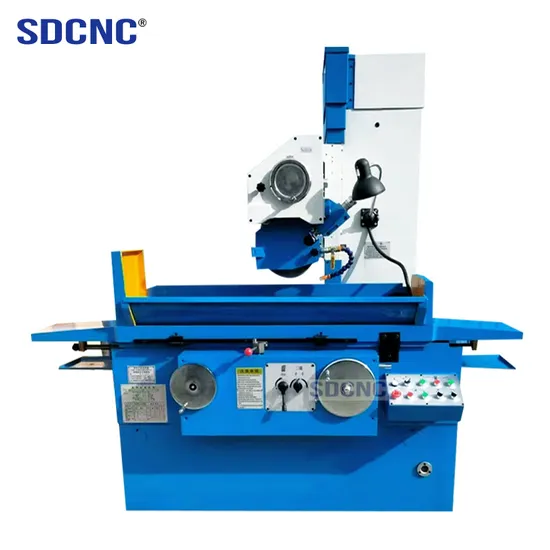

High Speed Surface Grinder Machine M7130 Hydraulic Surface Grinder
| US$12,500.00-13,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M7130
Type
External Grinding Machine
Processing Object
Gear
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Total Power of Motor
9kw
Power of Spindle Motor
5.5kw
Power of Oil Pump Motor
3kw
Speed of Grinding Wheel
1440rpm
Transport Package
Wood Packaging
Specification
2800x1750x2350
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
2800.00cm * 1750.00cm * 2350.00cm
Package Gross Weight
3500.000kg
Product Description
he main performance characteristics :The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology.Grinding head vertical rapid lifting, improve production efficiency.The grinding head lateral movement driven by hydraulic motor, which can also be manually.The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.Application :Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Product Parameters
Product main technical parameters:
| Description | Units | M7130x1000 | M7130x1600 | M7130x2000 | |
| Size of work table(L x W x H) | mm | 1000x300 | 1600x300 | 2000x300 | |
| Max. Longitudinal movement of worktable | mm | 1100 | 1700 | 2100 | |
| Max. Distance from the spindle centerline to the worktable surface | mm | 570 | 570 | 570 | |
| Max. Cross movement of grinding herd | mm | 350 | 350 | 350 | |
| Max. Vertical movement of grinding head | mm | 400 | 400 | 400 | |
| Vertical movement of the grinding head by hand wheel | Every lattice | mm | 0.01 | 0.01 | 0.01 |
| Each turn | mm | 1.00 | 1.00 | 1.00 | |
| Rapid lifting motor | Power | KW | 0.37 | 0.37 | 0.37 |
| Speed | R/min | 1440 | 1440 | 1440 | |
| Abrasive wheel dim (L x D x W) | mm | 350x127x40 | 350x127x40 | 350x127x40 | |
| Speed of grinding wheel | r/min | 1440 | 1440 | 1440 | |
| Total power of motor | KW | 9 | 10 | 12 | |
| Power of spindle motor | KW | 5.5 | 5.5 | 5.5 | |
| Power of oil pump motor | KW | 3 | 4 | 5.5 | |
| Processing accuracy | mm | 0.015/1000 | 0.015/1000 | 0.015/1000 | |
| Surface roughness | um | Ra:0.63 | Ra:0.63 | Ra:0.63 | |
| Package(L x W x H) | mm | 2800x1750x2350 | 4500x2000x2350 | 5500x2000x2350 | |
| Net. weight | Kg | 3500 | 3550 | 3600 | |
