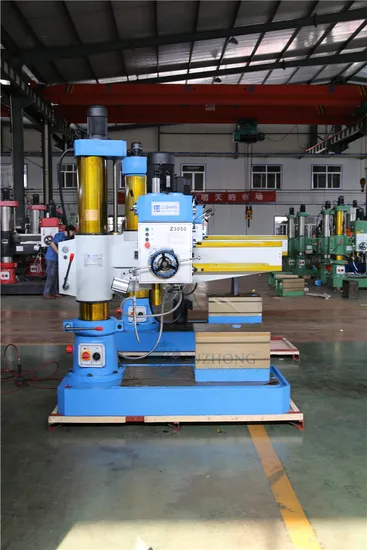

Electricity clamping radial drilling machine Z3040X14/II Automatic feed radial drilling machine
Basic Info.
Model NO.
Z3040x14/II
Controlling Mode
Artificial
Hole Diameter
40mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Name
Electricity clamping radial drilling machine Z3040
Max.drilling dia (mm)
cast iron 40 / Steel32
Dis from spindle to table
260-1050mm
Dis ;from spindle to column
360-1400mm
Spindle trave
200mm
Spindle taper
MT4
Spindle speeds range
40-1250rpm
Spindle speed steps
6
Spindle feeding range
0.10-0.25mm/r
Spindle feeding steps
3
RRocker rotary angle
90
Main motor power( kw)
2.2
Movements motor power
1.5
Weight (kg)
2200
Overall dimensions (mm)
1800×810×2200
Transport Package
Plywood Case
Specification
1800x810x2200mm
Trademark
Luzhong Machine Tool
Origin
China
HS Code
8459290000
Production Capacity
800 Set Per Month
Product Description
Electricity clamping radial drilling machine Z3040X14/II Automatic feed radial drilling machine Product DescriptionDetailed Photos
Product Parameters
The main performance characteristics:
Mechanical transmission
Electricity column clamping
Mechanical speed
Electricity take-off and landing ,spindle positive and inversion
Automatic feed
Product main technical parameters:
| SPECIFICATIONS | Z3040×14/II |
| Max.drilling dia (mm) | cast iron 40 / Steel32 |
| Distance from spindle nose to table surface (mm) | 260-1050 |
| Distance from spindle axis to column surface (mm) | 360-1400 |
| Spindle travel (mm) | 200 |
| Spindle taper(MT) | 4 |
| Spindle speeds range(r.p.m) | 40-1250 |
| Spindle speed steps | 6 |
| Spindle feeding range(mm/r) | 0.10-0.25 |
| Spindle feeding steps | 3 |
| Rocker rotary angle (°) | ±90° |
| Main motor power( kw) | 2.2 |
| Movements motor power (kw) | 1.5 |
| Weight (kg) | 2200 |
| Overall dimensions (mm) | 1800×810×2200 |
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
