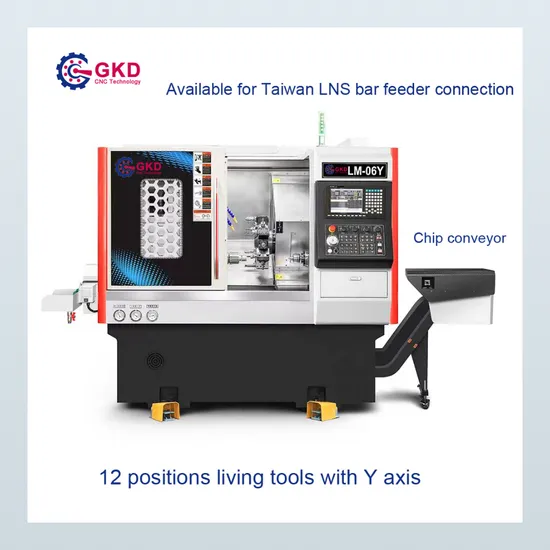

Dual Spindles CNC Lathe with 0-4500rpm Main Spindle Speed and Y Axis

Product Description

Introducing our state-of-the-art CNC Turning Lathe Center with Y-Axis and live tooling capabilities, engineered for unparalleled precision and versatility. Discover the transformative power of CNC (Computer Numerical Control) turning lathes that have set new benchmarks in manufacturing excellence. These advanced machines deliver exceptional precision and efficiency, adeptly handling operations like drilling, tapping, turning, and boring with unmatched accuracy. Widely embraced across numerous sectors, including automotive, aerospace, medical, and electronics, our CNC turning lathes are the cornerstone of producing intricate, high-precision components.
Dive into the intricate world of CNC turning lathes as we delve into their essential components, the fundamental principles that drive their operation, and the myriad of applications they empower.

Model	LM06Y
Spindle nose type	A2-5
Spindle through hole diameter (mm)	56
Bar diameter (mm)	46
Chuck size	6 inch
Controller	Syntec
Maximum turning diameter (mm)	420
Max processing length (mm)	350
Max processing diameter(mm)	280
Spindle speed (rpm)	0-4500
Milling speed (rpm)	0-4000
X/Y/Z axis rapid feeding (m/min)	≤25
Spindle indexing repeat positioning accuracy	±0.005°
Spindle indexing positioning accuracy	±0.002°
X/Y/Z axis positioning accuracy (mm)	0.002
X/Y/Z axis repeat position accuracy (mm)	0.003
X axis travel (mm)	500
Y axis travel (mm)	70
Z axis travel (mm)	400
Number of turret (pcs)	15(BMT40 serve turret)
Spindle power (KW)	7.5
X axis power (KW)	2.4
Y axis power (KW)	2.4
Z axis power (KW)	2.4
Hydraulic tailstock shaft diameter(mm)	75
Tailstock travel(mm)	400
Cutting pump power (KW)	0.37
Hydraulic tank capacity (L)	60
Tank volume (L)	95
Machine size (mm)	L2200*W1800*H1900
Machine weight (KG)	3000

Company Profile
For many years, GKD (Mingju) has been steadfast in integrating premier resources and pioneering technologies. Our unwavering commitment is to serve customers worldwide with unparalleled quality and excellence.
GKD is a consortium of companies excelling in the R&D and manufacturing of CNC machining centers. Strategically located near Hong Kong in China, famously known as the 'World Factory,' and bolstered by our strategic European headquarters in Italy (Taiwan), GKD commands a robust global sales and service network. The Group boasts five production bases across Dongguan, Chongqing, Anhui, Hunan, and Jiangsu. Our extensive product line includes vertical machining centers, high-speed gantry machining centers, horizontal machining centers, horizontal boring and milling machines, CNC lathes, turning and milling centers, five-axis machining centers, and other sophisticated CNC machine tools and production lines. As a premier manufacturer with a comprehensive industrial chain, our products are integral in aerospace, mold, automotive, energy, marine, engineering machinery, 3C electronic products, and other manufacturing sectors.
GKD Group is resolute in delivering high-quality products and all-encompassing solutions. We rigorously adhere to the high-speed, high-precision, and high-efficiency mandates of intelligent equipment, ensuring superior solutions that meet our clients' cost-effectiveness criteria. With formidable manufacturing capabilities and stellar after-sales service, GKD has proudly served a diverse customer base across dozens of countries and regions globally.
GKD Group is dedicated to serving you with sincerity and excellence!
Our Advantages
1. Experience Unparalleled Expertise in CNC Machine Exportation2. Superior Craftsmanship with Italian and Taiwanese Technology3. Flexible Payment Options: T/T, Western Union, L/C, Paypal4. Premium Quality, Safety-Assured Materials, and Competitive Pricing5. Accepting Small Orders for Your Convenience6. Prompt and Efficient Customer Response7. Secure and Swift Transportation Services8. Tailored OEM Designs to Meet Your Unique Needs
Certifications
Packaging & Shipping
After Sales Service
1) Our quality warranty period spans a full 12 months, commencing from the day the shipping commodity reaches the designated port of destination, excluding any physical damage. During this period, we pledge to provide necessary fittings at no cost. Please note that users must return the damaged fittings via courier at their own expense before we dispatch the replacement parts. Beyond the warranty period, any fittings requiring repair or replacement will incur a reasonable charge.2) Given the challenges of face-to-face maintenance, we offer extensive online support. Our technical assistance is readily available through email, MSN/Skype, camera, video, telephone, and fax. Whether you encounter issues with installation, operation, adjustment, or maintenance, our team is here to help.3) Should you face challenges with installation, usage, or adjustment that our online support cannot resolve, we provide Door-to-Door service. If you require our engineers to assemble, maintain, or adjust the machine on-site, you will need to assist with visa formalities, cover travel expenses upfront, and arrange accommodation during the business trip and service period. Additionally, please arrange a translator for the service engineer throughout their visit. Alternatively, you can send your engineers to our factory for comprehensive, long-term technical training at no cost.
FAQ
1. What is your minimum order quantity (MOQ) and warranty period? Our minimum order quantity is one set, and we offer a comprehensive one-year warranty.2. Which brand of bearings do you use in your products? We use premium NSK bearings sourced from Japan.3. What is the expected delivery time for your products? We ensure delivery within 15-30 days after we receive your payment.4. How do you handle issues during the warranty period? If any product quality issues arise during the warranty period, we provide free maintenance and necessary parts replacement at no additional cost. If the issue is not related to our product quality, and engineering assistance is required, we will charge a reasonable fee for the service.5. Can your company provide on-site technical guidance for our workers? Upon the machine's arrival at the buyer's site, we promptly dispatch skilled mechanical and electrical engineers for installation as per the buyer's schedule. The buyer is responsible for the engineers’ accommodation and meals, plus a daily fee of USD150 per person. We will assist in visa processing and other preparations before traveling abroad to ensure a smooth installation process.
