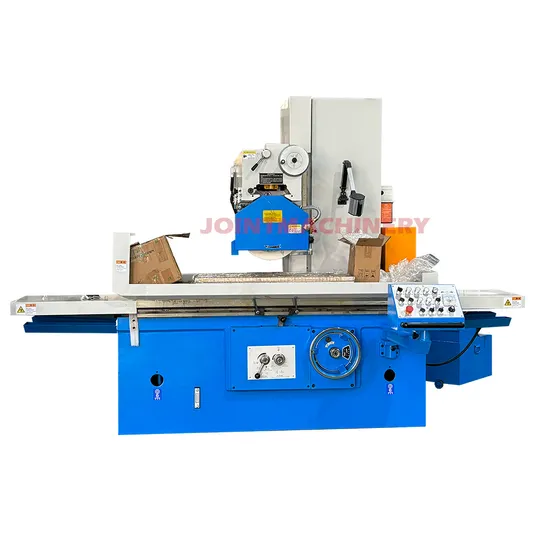

M7132 Hydraulic Metal Surface Grinding Machine Tool with Mobile Grinding Head

Product Description

1. Expand Your Horizons with a Widened Work Surface! Effortlessly handle larger workpieces as the work surface now accommodates greater dimensions, enabling more comprehensive grinding tasks.
2. Experience Superior Rigidity with an Integrated Structure! Our machine features a movable grinding head structure seamlessly integrated at both front and rear, ensuring exceptional rigidity and stability throughout the machine's operation.
3. Seamless Hydraulic Movement and Speed Regulation! The worktable's longitudinal and grinding head's lateral movements are hydraulically driven, offering stepless speed adjustments. Choose between manual or self-service lateral feeding for ultimate flexibility.
4. Effortless Vertical Feed with Quick Lift! The grinder's vertical feed is manually controlled, enhanced by a quick lifting mechanism to minimize labor, making operation more efficient and user-friendly.
5. Unmatched Precision and Power with High-Rigidity Spindle! Featuring a tapered sliding bearing at the grinding head's front end, it ensures high spindle rigidity and precision. Enhanced with a 7.5kw motor, it performs powerful grinding tasks effortlessly.
6. Experience Smooth, Quiet, and Efficient Operations! The machine tool promises easy operation, smooth running, low noise levels, and outstanding grinding efficiency, redefining performance standards.
1. Precision Grinding Head
Achieve Excellence with Our Precision Grinding Head! This manual head, equipped with a rapid lifting mechanism and built-in motor, is crafted for exceptional rigidity and precision, guaranteeing superior grinding outcomes.
2. Efficient Electromagnetic Chuck
Maximize Efficiency with Our User-Friendly Electromagnetic Chuck! Designed to boost operational efficiency and save time, it supports continuous use for over 20 hours, perfect for demanding tasks.
3. Premium Metal Hand Wheel
Master Control with the Premium Metal Hand Wheel! Featuring high precision, it allows effortless operation. Achieve an extraordinary accuracy level of 0.002MM, setting new benchmarks for precision.
4. Advanced Double V Guide Rail
Revolutionize Precision and Reliability! Our advanced guide rail system, with a longitudinal double V and lateral single V flat guide rail, combined with hydraulic drive, ensures unmatched precision.
5. Durable Resin Sand Cast Iron Body
Strength and Stability Redefined! Our resin sand cast iron body, meticulously crafted and aged for dimensional accuracy, offers remarkable stability and precision, optimizing finishing results.
M7132 Hydraulic Metal Surface Grinding Machine Tool with Mobile Grinding Head

Model		Unit	M7130	M7132	M7132x16
Worktable size		mm	320*1000	320*1000	320*1600
Maximum grinding size		mm	320*1000*400	320*1000*400	320*1600*400
Longitudinal movement of worktable (hydraulic)		mm	200-1100	200-1700	200-1700
Worktable speed (stepless speed)		m/min	3-25	3-25	5-25
No. of T-slots on worktable		pcs	3	3	3
Width		mm	18	18	18
Worktable load (including electronic chuck)		kg	500	800	800
Electronic chuck size		mm	300*680	320*1000	320*800 (2pcs)
Grinding head transverse feed (stepless speed)
Continuous		mm/min	0.8-3	0.8-3	0.8-3
Intermittent		mm/pcs	3-30	3-30	3-30
Vertical handwheel minimum scale		mm	0.01	0.01	0.01
Vertical feed of grinding head per hand wheel rotation		mm	0.5	0.5	0.5
Grinding wheel size		mm	400*40*203	400*40*203	400*40*203
Total capacity of electrical equipment		kva	14	14	16
Grinding head motor
Power		kw	7.5	7.5	7.5
Speed		r/min	1440	1440	1440
Parallelism of machined surface to base surface		mm	300:0.008	300:0.008	300:0.008
Workpiece surface roughness		μm	Ra0.63	Ra0.63	Ra0.63
Machine tool dimensions		mm	3000*1675*2200	3000*1675*2100	5500*1675*2100
Packing size		mm	2610*1800*2450	2610*1800*2450	5100*1800*2450
Net weight		kg	3300	3300	4800
