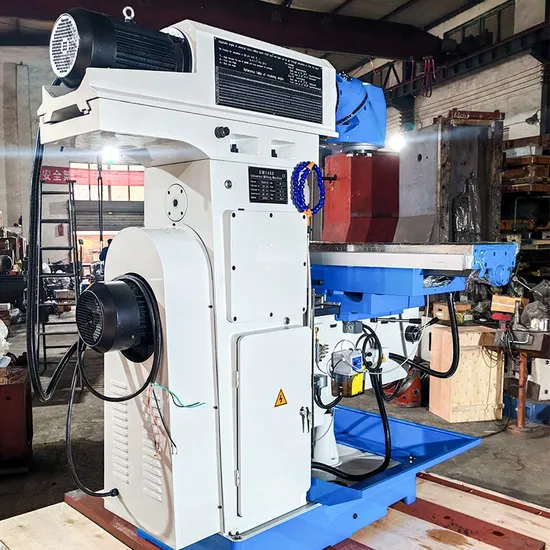

Milling Machine XL6032 XL6032c XL6032cl XL6036 XL6036c XL6036cl
| US$5,000.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XL6032 XL6032C XL6032CL
Type
Knee Type Milling Machine
Object
Metal
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
320X132500mm
Long Travel(mm)
750mm
Cross Travel(mm)
320mm
Vertical Travel(mm)
460mm
Motor
5.5kw
Transport Package
Plywood Case
Specification
1600kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84581900
Production Capacity
10 PCS/Month
Product Description
Milling MachineHorizontal Swivel Table Miling Machine XL6032
1.Rotary table can be ordered at special request
2.Driven by AC Servo Motor
3.Table automatic feed on X,Y,Z
4.Automatic rapid feed X,Y,Z
Specification of swivel table milling machine
SPECIFICATIONS:
| SPECIFICATION | UNIT | XL6032 | XL6032C | XL6032CL |
| Spindle taper | - | 7:24 ISO50 | ||
| Distance between spindle nose and table | mm | 20-480 | 20-470 | |
| Distance from spindle axis to arm | mm | 175 | ||
| Spindle speed range | - | 12steps 60~1800r.p.m | ||
| Table size | mm | 1325X320 | 1600X320 | |
| Table travel(X/Y/Z) | mm | 750/320/460 | 1100/320/450 | 1300/320/450 |
| Table feed(X/Y/Z) | mm/min | 30-750 / 20-500 / 15-375 | ||
| Table rapid speed (X/Y/Z) | mm/min | 1200/800/600 | ||
| T-slots(NO:/width/pitch) | mm | 3/18/70 | ||
| Arm travel | mm | 500 | ||
| Main motor power | kw | 5.5 | ||
| Torque of X/Y/Z axis AC servo motor | N.m | 10 | ||
| Overall size | mm | 1800X2100X1870 | 2245X2100X1870 | 2520X2100X1870 |
| Net weight | kg | 2400 | 2465 | 2510 |
L6136 rotating worktable milling machine
| Specification | Unit | XL6036 | XL6036C | XL6036CL |
| Spindle taper | - | 7:24 ISO50 | ||
| Distance between spindle nose and table | mm | 20-480 | 20-470 | |
| Distance from spindle axis to arm | mm | 175 | ||
| Spindle speed range | - | 12steps 60~1800r.p.m | ||
| Table size | mm | 1325X360 | 1600X360 | |
| Table travel(X/Y/Z) | mm | 750/320/460 | 1100/320/450 | 1300/320/450 |
| Table feed(X/Y/Z) | mm/min | 30-750 / 20-500 / 15-375 | ||
| Table rapid speed (X/Y/Z) | mm/min | 1200/800/600 | ||
| T-slots(NO:/width/pitch) | mm | 3/18/70 | ||
| Arm travel | mm | 500 | ||
| Main motor power | kw | 5.5 | ||
| Torque of X/Y/Z axis AC servo motor | N.m | 10 | ||
| Overall size | mm | 1800X2100X1870 | 2245X2100X1870 | 2520X2100X1870 |
| Net weight | kg | 2450 | 2515 | 2560 |
