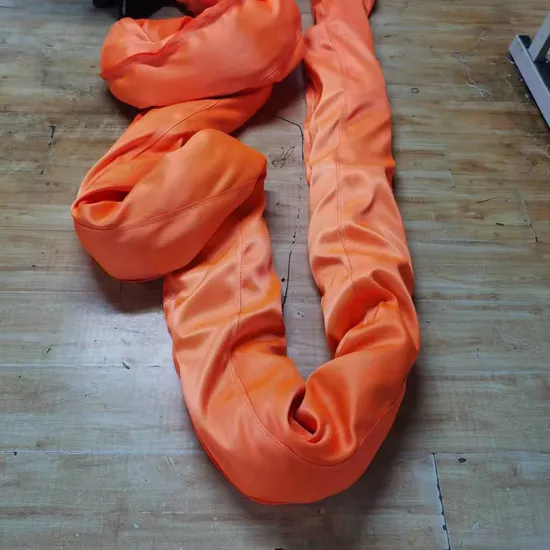

Heavy Duty Polyester Round Endles Sling Wll 100 Ton

Product Description

100% Polyester 10 Tons Round Sling for Lifting sling
Round sling is an all-purpose lifting sling, which is both high strong and non-damaging to its load. Extremely light in weight and infinitely flexible in all directions, it is easy and quick to manipulate even when awkwardly shaped or fragile loads are being lifted. Round sling is a continuous loop made from polyester yarn encased in a sleeve of polyester or Nylon fabric. The sleeve is so constructed that it protects the internal rows of yarn filament and keeps them in a parallel formation at all times. The yarn fibre core is free to spread out into a flat shape where the Round sling is in contact with its load. This provides a broad support, which cushions the load against damage and reduces slipping. The low stretch characteristics of the polyester yarn also prevent 'load bounce' when hoisting very heavy weights. Manufactured to EN 1492-2, JB/T8521.2, AS4497.1 conforming to the CE GS.
The unique advantages of Round Sling:
1,Color code, in according with international standard, to validate sling capacity.
2,Special thickness sleeves and special technical to add using life.
3,Each strips equal to 1ton capacity, it is easy to differentiate sling capacity.
4,Clearly print WLL and length on surface of sling.
,Change-bearing point to add using life.
6,If the core material no break, no loss of strength from abrasion, there is a simple ness way, it is easy to differentiate to decide if the sling is taken away from service or not.
7,100% polyester has less than 4% extension at rated capacity, and will return originally length, and 8%-11% extension at break.
8,Clearly tag with serial number and a copy of certificate together with one sling. 9,Working temperature range: -40ºC-100ºC
Conformity EC Council Direcive 2006/42/EC Machinery
Round Sling's SWL WLL M CC

Stock No. Color	WLL	SWL,WLL(t),M,CC					Double Multi-set SWL(t)
		Vertical	Choker	Vertical			Choker	Vertical	Choker	Vertical
				0-7°	7-45°	45-60°	<45°	<45°	45-60°	45-60°
		1	0.8	2	1.4	1	1.4	1.12	1	0.8
RS7010	1t	1,000	800	2,000	1,400	1,000	2,800	1,120	1,000	800
RS7020	2t	2,000	1,600	4,000	2,800	2,000	5,600	2,240	2,000	1,600
RS7030	3t	3,000	2,400	6,000	4,200	3,000	8,400	3,360	3,000	2,400
RS7040	4t	4,000	3,200	8,000	5,600	4,000	11,200	4,480	4,000	3,200
RS7050	5t	5,000	4,000	10,000	7,000	5,000	14,000	5,600	5,000	4,000
RS7060	6t	6,000	4,800	12,000	8,400	6,000	16,800	6,720	6,000	4,800
RS7080	8t	8,000	6,400	16,000	11,200	8,000	22,400	8,960	8,000	6,400
RS7100	10t	10,000	8,000	20,000	14,000	10,000	28,000	11,200	10,000	8,000
RS7120	12t	12,000	9,600	24,000	16,800	12,000	33,600	13,440	12,000	9,600
RS7150	15t	15,000	12,000	30,000	21,000	15,000	21,000	16,800	15,000	12,000
RS7200	20t	20,000	16,000	40,000	28,000	20,000	28,000	22,400	20,000	16,000
RS7300	30t	30,000	24,000	60,000	42,000	30,000	42,000	33,600	30,000	24,000
