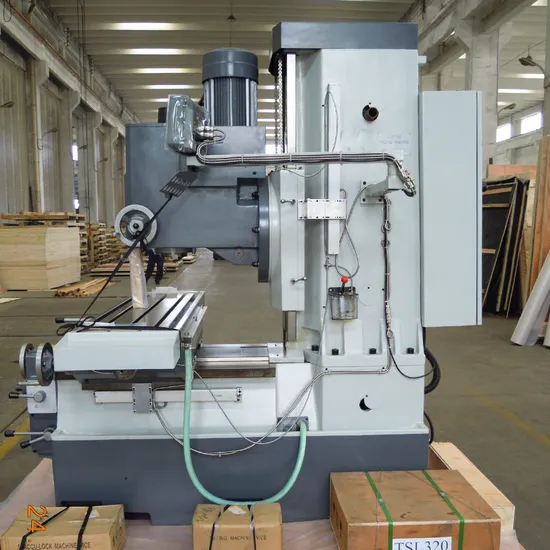

Cheap Variable Spindle Speed Bed Type Milling Machine for Metal Xa7140
Basic Info.
Model NO.
XA7140
Type
Tool Milling Machine
Object
Hardware
Structure
Ram
Milling Cutter Type
Customized
Milling Cutter Structure
Customized
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Xa7140 Bed Type Milling Machine for Metal
Model
Xa7140
Table Size
1400mmx400mm
Spindle Taper
ISO50
Spindle Speed
18-1800 Variable
Main Motor Power
7.5kw
Delivery Time
4 Months
Warranty Time
12 Months
T Slot
3
Distance Spindle to Column
520mm
Key Word 1
Milling Machine for Metal
Key Word 2
Bed Type Milling Machine
Key Word 3
China Milling Machine
Transport Package
Wooden Pallet
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
229.00cm * 177.00cm * 212.00cm
Package Gross Weight
3860.000kg
Product Description
Cheap Variable Spindle Speed Bed Type Milling Machine For Metal XA7140Standard accessories:
Quartz lamp,
cooling,
emergency stop,
CE standard electrical parts,
three axis automatic feed
Optional accessories:
3-axis SINO digital display, Flat pliers 200mm,
X,Y axis change to ball screw,
Universal dividing head F11160A
Rotary table TS400A
Spindle protection
LED light
| Model | Unit | XA7140 |
| Table size | mm | 1400x400 |
| T slot / Size ( Width ) / Centre distance | no | 3/18/100 |
| Max. load of Table | kg | 800 |
| Longitudinal travel | mm | 800 |
| Cross travel | mm | 400 |
| Vertical travel | mm | 150-650 |
| Spindle taper | ISO50 | |
| Quill travel | mm | 105 |
| Spindle speed /step | rpm | 18-1800 variable |
| Spindle axis to column surface | mm | 520 |
| Spindle nose to table surface | mm | 150-650 |
| Longitudinal/cross feed | mm / min | 18-627/9 |
| Vertical | 18-627/9 | |
| Longitudinal/cross rapid speed | mm / min | 1670 |
| Rapid Traverse vertical | 1670 | |
| Main motor | kw | 7.5 |
| Feed motor | kw | 0.75 |
| Elevating motor for headstock | kw | 0.75 |
| Coolant motor | kw | 0.04 |
| Overall dimension | mm | 2290x1770x2120 |
| Machine weight | kg | 3860 |
TENGZHOU BETA CO.,LTD. is a highly reputed professional Machine Tool manufacturer and exporter in CHINA. We focus on complete seals solution include seal making CNC machine, seal processing software, seal materials and cutting tools, the annual output quantity up to more than 1000 units.
Having focused on international market. We have placed the priority on both machines' quality and service. All machines will thoroughly follow every stage during manufacturing, assembling, final testing, packing and shipping, we promise that every provided machine will be strictly tested and be ready to operate before delivery.
