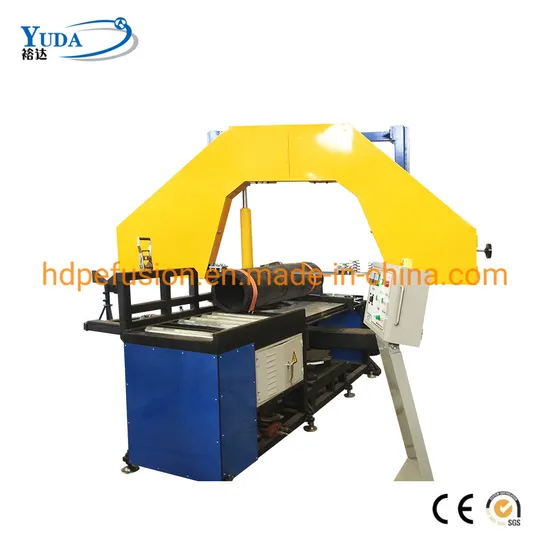

630mm Workshop PE Pipe Angle Cutting Machine

Product Description

630mm Workshop PE Pipe Angle Cutting Machine
Keywords:Band Saw, Plastic pipe cutting machine, Angle cutting machine for HDPE pipes, PE pipe cutting machine, plastic pipe band saw, plastic pipe cutter, Multi-angle pe cutting machine, plastic pipe saw,Multi-angle cutting machine, plastic cutting machine, pvc cutting machine, PE/PP cutting machine, angle band saw
Product Description
1. Suitable for cutting pipes according to specified angle and dimension while making an elbow, tee or cross, which lower the material waste and improve the welding efficiency.
2. Cutting angle 0~67.5°, accurate angle location
3. Applied to solid pipes or structured wall pipes made of thermoplastic such as PE, PP and PVDF, and other pipe and fittings made of non-metal materials
4. A special designed integrality of body and swivel table makes them extremely stable
5. Self inspection and stop of the machine in case of saw blade broken enables to guarantee operator's safety
6. Strong construction, stable performance, lower noise and easy operation
7.Infrared protection device(optional)
8.Automatic angle rotation function (Optional)
Product Parameters

Model	DQJ630	DQJ800	DQJ1200
Maximum range	≤630mm	≤800mm	≤1200mm
Max. line speed	200m/min	200m/min	200m/min
Feed Speed	Adjustable	Adjustable	Adjustable
Working voltage	380V,50Hz	380V,50Hz	380V,50Hz
Drive motor	0.75KW	0.75KW	1.5KW
Cutting motor	2.2 KW	3 KW	3.7KW
Total Power	2.95 KW	3.75KW	5.2 KW
Weight	1480 KGS	2188 KGS	4657KGS

Detailed Photos

Packaging & Shipping

Company Profile
Wuxi Meierte Machinery Technology Co.,ltd is located at Wuxi in Jiangsu. Meierte is growing one of the largest welding manufacturers in China. It is an enterprise devoted to plastic pipe welding technology and research, design, manufacture, sales, training and maintenance of plastic pipe welding equipment, providing the customers with full and best service.
Meierte's main products include manual butt fusion machine, semi-product hydraulic butt fusion machine, CNC butt fusion machine, Multi-angle fitting welding machine, Multi-angle cutting machine,Saddle fusion machine for reducing tee,Arched surface cutter, all of these have semi-automatic or full-automatic type to choose. And also accompany with various auxiliary tools specially used in construction, such as Drainage welding machine, Socket welder, Electrofusion machine,Extrusion welder, Geomembrane welder,pipe cutter,bead remover etc.
Many years of growth enables Meierte to accumulate rich experience in technology development, It has set up good and wide business relationships with domestic and foreign scientific research organization, production factories, gas and running water companies, and professional construction companies. Meierte is responsible for every customer, and before delivery, each machine must pass factory strict inspection process to ensure best quality and qualified product. After-sale service always exists.
The guideline of our enterprise is that customer's need is our pursuit, the product quality is the life of the enterprise, enterprise's aim is to be world-famous. We wholeheartedly welcome numerous customers at home and abroad to visit us for guidance and business discussion.
