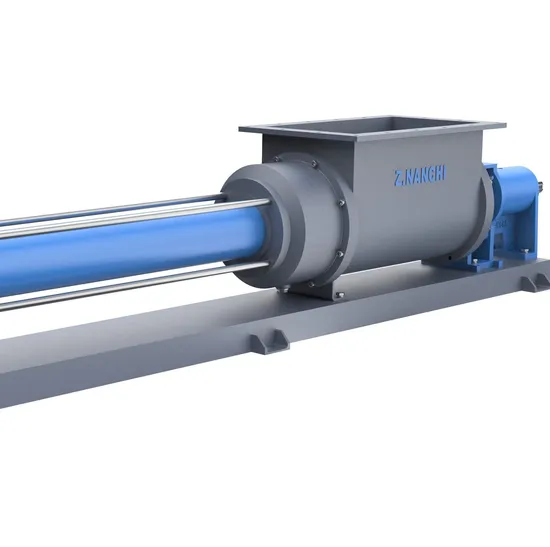

Bearing Frame Design for Nt Hopper Feeding Pumps

Product Description

Product DescriptionZ.NANCHI single screw pump is applicable to almost all industries. It can transport almost all types of media continuously and stably, with low pulsation, no shear and speed proportional metering. It can pass through large particle solids.
We have a "WOLF TEAM":
More than 20 years technological research
Integrity, Standardization, and Efficient is our work principles
Winning the market with technology and innovation
Welcome to contact us, we are a professional group, let talk the details with you.
https://zjncpump.en.made-in-china.com/contact-info.html
Performance
Capacity: 100m3/h
Pressure: 2.4MPa or 4.8MPa
Application scope
Used for transporting all kinds of Newtonian fluid and non-Newtonian fluid with different viscosity and solid content in sewage, food, chemical industry and other industries, as well as non bridged semi-solid media such as concentrated sludge, dewatered sludge, concentrated pulp and so on.
Characteristic
The feeding and feeding spiral design with large rectangular hopper can be optimized and customized, and the hopper and feeding spiral can be optimized according to specific process requirements. Direct connection design, pump and drive directly flange connected, compact design with simple structure, reduced length, reduced weight, small footprint, low usage and maintenance costs, simple and easy operation and maintenance.
Here, Let's check the Components List Explosive View

101.Stator	0017 Spring washer	0068 Hexagon nut
105.Rotor	0018 Hexagon nut	1211 Suction chamber
1111 Bearing housing	0043 Flat washer	1221 Discharge body
1112 Connecting shaft	0061 O-ring	1301 Intermediate shaft
0011 Hexagon bolt	0062 PTFE gasket	1311 Bar
0012 Flat washer	0063 Screw plug	1312 Leg
0013 Spring washer	0064 PTFE gasket	1410 Seal components
0014 Hexagon nut	0065 Screw plug	1510 Universal joint parts
0015 Hexagon bolt	0066 Flat washer	1610 Reducer
0016 Flat washer	0067 Spring washer	1710 Motor

NT Hopper Screw Pump with two different design: Direct Connection Design & Bearing Frame Design
Any interesting , welcome to choose:https://zjncpump.en.made-in-china.com/product-list-1.html
Here, some processing and spare parts, know more about Z.NANCHI
Packing : We use wooden boxes for packaging
We use professional export packaging, wooden boxes. Any requirements on the package, we can talk te details.
We, Z.NANCHI, Welcome to visit us: https://zjncpump.en.made-in-china.com/product-list-1.html
Z.NANCHI
MAKE EVERYTHING POSSIBLE TO TRANSPORT
