Plywood Produce Line Machine: Tree Cutting Machines / Veneer Guillotine Machines / Plywood Core Veneer Machine

Product Description

Product Description
01 VENEER MAKING LINE: DEBARER+PEELING+DRYER

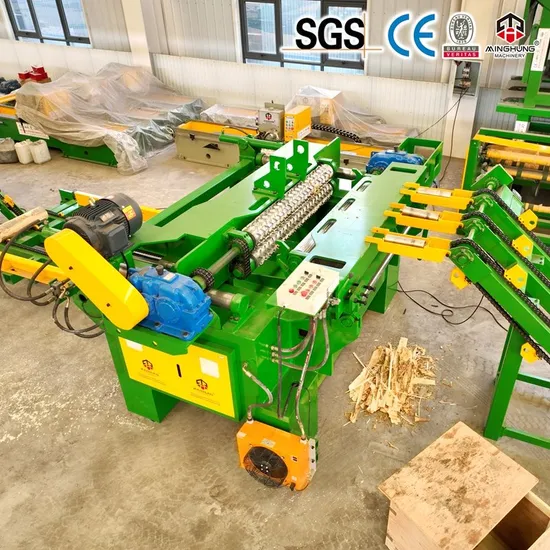

STEP1: DEBARKING MACHINE

Model	4feet Log Debarker	8feet Log Debarker
Max log length	1400mm	2600mm
Max opening	550mm	800mm
Speed	70m/min	70m/min
Single roller power	11kw	15kw*2pcs
Double roller power	11kw	15kw*2pcs
Peeling knife size	1500*180*16mm	2700*180*16mm
Weight	4500kg	9000kg

STEP 2: PEELING MACHINE

Model	4feet Veneer Peeler	8feet Veneer Peeler
Max log length	1400mm	2600mm
Max opening	500mm	640mm
Thickness	0.5-4.0mm	0.5-4.0mm
Speed	30-100m/min	30-100m/min
Single roller motor	7.5kw*2pcs	15kw*2pcs
Double roller motor	7.5kw*2pcs	15kw*2pcs
Clipper size	1500*90*12.7mm	2700*90*12.7mm
Total size	4500*2300*1500mm	7200*2300*1700mm
Weight0	9000kg	135000kg

STEP 3: DRYING MACHINE

Floors	4
Heating area	9sections=18m
Cooling area	1sections=2m
Heating motor	11kw*9pcs
Cooling motor	4kw*2pcs
Transmission speed	1-17m/min
Heating medium	oil/steam
Drying temperature	150-180ºC
Capacity	55-60cbm/22h

02 PLYWOOD FORMING LINE: SIZING+COLD+HOT PRESS

STEP 4: GLUING SIZING MACHINE

Diameter of coating roller	φ310mm
Line speed	20-30m/min
Transmission way	Gear&Chain
Size	3250*1250*1700mm
Weight	1000kg

STEP 5: COLD PRESS MACHINE

Pressure	400t /500t /600t
Cylinder diameter	Φ320*2pcs /Φ360*2pcs /Φ260*6pcs
Power	13.2kw
Max opening	1800mm/1200mm
Size	3600*1370*4000mm
Weight	15000kg/25000kg

STEP 6: MULTI-LAYERS HOT PRESS MACHINE

Pressure	500T/800T	800T
Oil cylinder	Φ320*3000MM*4pcs	Φ320*4000MM*4pcs
Plates distance	100mm	100mm
Power	63kw	81.5kw
Closing time	35s	35s
Size	3590*1370*7440mm	3590*1370*8960mm
Weight	93000kg	104000kg

03 PLYWOOD TRIMMING LINE: EDGE CUTTING+SANDING MACHINE

STEP 7: EDGE TRIMMING SAW MACHINE

Size	4*8feet or customerized size
Working speed	70-120m/min
Capacity	500pcs/h
Transport	roller
Working style	Infrared ray
Size	9000*3500*2300mm
Weight	9000kg

STEP 8: SANDING MACHINE

TYPES	SINGLE/DOUBLE SIDES
SANDING WIDTH	40-1300MM
THICKNESS	3-100MM
SANDING BELT SIZE	1300*2620MM
MAIN MOTOR	45KW*1PC+30KW*1PC
SIZE	3350*2900*2440MM
WEIGHT	9500KG
