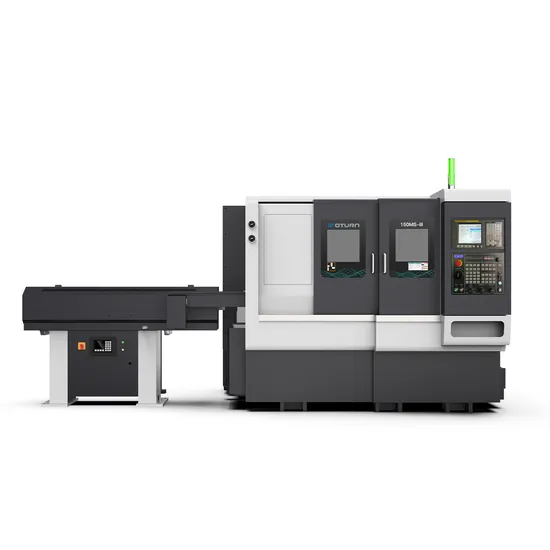

Oturncnc Horizontal Ty150ms-III 4 Axis CNC Lathe Machine Double Spindle Turning Center

Product Description

Product Description
High-strength HT300 one-piecestructurecastingironbed, 30-degree steptypeflat rail structure, enhanced by finite element analysis for superior mechanical rigidity and stability. Maintains long-term reliable accuracy, processing stability, and tool life. Stress relief treatmentsimprove overall accuracy and stability. High-strength roller rail design and screw pre-tension drive system enhance response rigidity.
Both ends of the workpiece can be precisely processed simultaneously in one clamping, simplifying manual operations, boosting output, and reducing processes. The secondary spindle offers full turning capabilities, allowing workpieces to be expressed during machining, thereby reducing cycle times.
1.Direct drive synchronous electric spindle device: magnetic ringtypeincremental encoder (Sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds.
Effectively eliminate spindlevibration, with nose end deflection accuracy within 0.002mm. Enhances surface finish of the workpiece.
Rear-mounted rotor facilitates installation and maintenance.
Spindle motor equipped with a cooling system to suppress thermal displacement, ensuring a constant working temperature. The spindle system has passed rigorous dynamic balance tests, offering excellent precision retention, high rigidity, and efficiency. Suitable for both fine and heavy-duty machining, and ideal for mass production of complex, high-finish products.product.
2. High rigidity integral servo power turret with quick and precise tool change performance. Tool holder features a high-rigidity BMT interface. Power transmission driven by servo spindle motor.
3. Equipped with THK linear guide rail and ball screw. Heat-treated, precision-ground ball screws ensure optimal precision and durability. Each axis uses a direct transfer shaft structure and double-anchor pre-relay method to minimize thermal displacement, significantly improving machining accuracy. High-rigidity, large-size, heavy-duty linear slide rails maintain accuracy under impact, with smooth displacement and low noise, prolonging service life.
4. Standard FANUC system configuration with feed drive using FANUC servo motor.
5. Perfect hydraulic and lubrication system with high-quality hydraulic pumps, valves, and components, greatly reducing failure rates. Simple and reliable design.
6. Utilizes Taiwan rotary chuck, oil cylinder, and automatic chip removal device, significantly reducing operator labor intensity and ensuring safe and efficient production. These functional components can be controlled via programming.
Product Parameters

Item	Unit	150MS-III
Max. swing diameter over bed	mm	Ф380
Max. processing diameter	mm	Ф100
Max. processing diameter Over tool holder	mm	Ф160
Max. processing length	mm	150
Spindle nose	type	A2-5
Max. speed of spindle	rpm	5500
Oil cylinder/Chuck	"	6
Spindle bore diameter	mm	Ф56
Bar diameter	mm	Ф45
Direct drive spindle motor power	kw	17.5
Spindle torque	N.m	62-125
Sub spindle nose	type	A2-4
Max. speed of Sub spindle	rpm	6000
Oil cylinder/collect	"	5
Sub spindle bore diameter	mm	Ф46
Bar diameter	mm	Ф32
Direct drive sub spindle motor power	kw	11
Sub spindle torque	N.m	27-66
X1/Z1 motor power	kw	1.8/1.2
X2/Z2 motor power	kw	1.2/1.2
X1/Z1 travel	mm	135/370
X2/Z2 travel	mm	215/400
X1/Z1/X2/Z2 fast moving	m/min	30/30/30
Positioning accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003
X1/Z1 slide rail type	/	Roller 35/35
X2/Z2 slide rail type	/	Roller 30/30
Upper power turret type	/	BMT45-12T
Upper power turret motor	Kw/N.m	2.2/26
Max. speed of upper power turret	rpm	6000 ER20
Specification of outer diameter tool holder	mm	20x20
Specification of inner diameter tool holder	mm	Ф32
Adjacent tool change time	sec	0.15
Lower power turret type	/	BMT40-8T
Lower power turret motor	Kw/N.m	2.2/26
Max. speed of lower power turret	rpm	6000 ER20
Max. speed of lower power turret	mm	20x20
Specification of outer diameter tool holder	mm	Ф25
Specification of inner diameter tool holder	sec	0.15
Machine dimension	m	2.2x2.1x1.7
Machine weight	kg	3500
Cutting fluid tank volume	L	180
Hydraulic unit box volume	L	40
Hydraulic pump motor power	kw	1.5
Lubricant oil tank volume	L	2
Automatic lubrication pump motor power	W	50
Cooling water pump power	W	750
