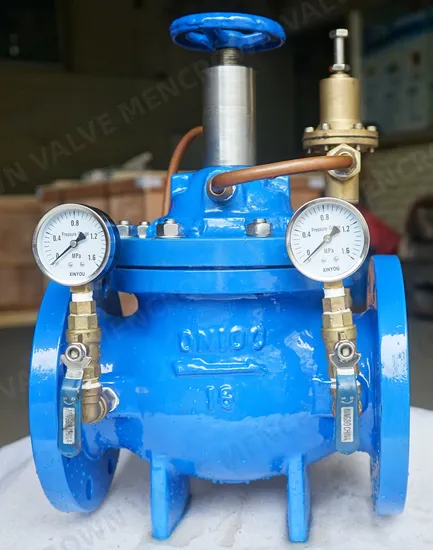

Δ The KARFAR model GL400X is popularly mounted in water distribution pipeline which needs flow control. This valve functions to maintain a stable flow rate preset by the pilot and reduce high flow rate to a preset data.
It turns the high upper-stream pressure into low pressure, so that the downstream flow will not be affected by the upper-stream changing pressure.
| Body & Bonnet | Cast iron, Ductile iron, Cast steel, Stainless steel etc |
| Stem | Stainless steel |
| Disc | Brass, Carbon steel, Ductile iron etc |
| Seat | Brass, Stainless steel, Carbon steel etc |
| Sealing | NBR etc |
| Diaphragm | NBR, EPDM |
| Piston | Brass, Carbon steel, Ductile iron etc |
| Pressure Grade | PN10, PN16, PN25, PN40, CL150, CL300 |
| Size | DN50-DN800 |
| Flange Dimension | ASME B16.42, BS4504, ISO2531, ISO7005 etc. |
| Face to Face Length | ANSI B16.11, API594,BS5155, ISO5752, DIN3352 etc. |
