Long Distance Wireless Mobile Video Receiver with Free Yagi and Omni Antenna
| US$1,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.

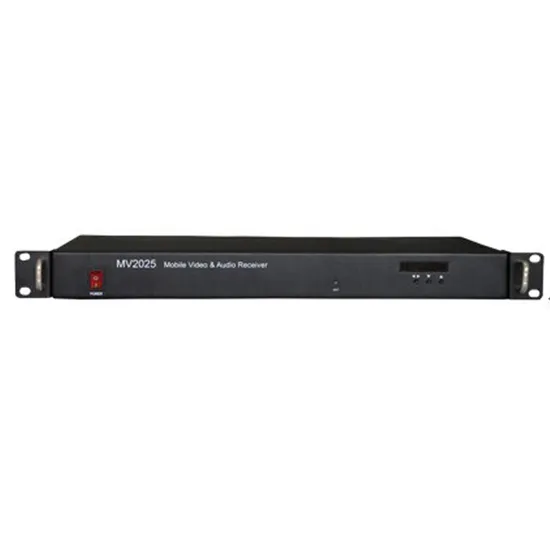

MV2025RJ7 Rack Mount Video Receiver
Certification
CE, ISO
Condition
New
Frequency Receiving Range
170~860MHz or User Customized
Frequency Bandwidth
6/7/8MHz or 1.25/2.5MHz Optional
Rx Sensitivity
-96dBm~-20dBm@8m/-106dBm~-20dBm@1.25m
Demodulation
Cofdm
Video Decoding
MPEG-2/MPEG-4 Compatible
Constellation
Qpsk/16qam @ 1.25/2.5MHz Qpsk/16qam/64qam @ 6/7/8m
Transport Package
Box
Trademark
ALLTECH
Origin
China
Production Capacity
50000/Year
Product Description
Functions & Features: 1U casing design for simple installation Working frequency directly panel display Power Off Memory Double-antenna input, diversity receiving Antenna feed configurable Built-in antenna short circuit protection Data transmission ABS encrypted A/V signal transmission Receiver controllable by PC or display panel Built-in switching power supply with wide-range working voltage AC220V and DC12V power supply auto switched A/V signal simultaneously output Two-channel video output with standard BNC connector One-channel data output, unidirectional RS232 data transmission ABS decryption on A/V signal receivedSpecifications:
| Power Supply | ||
| Working voltage | AC220V/DC12V | |
| Working current | ≤1.5A@DC12.5V | |
| Video Receiving | ||
| Frequency receiving range | 170~860MHz or user customized | |
| Frequency bandwidth | 6/7/8MHz or 1.25/2.5MHz optional | |
| Rx sensitivity | -96dBm~-20dBm@8M/-106dBm~-20dBm@1.25M | |
| Demodulation | COFDM | |
| Video decoding | MPEG-2/MPEG-4 compatible | |
| Decryption | AES/ALLTECH Basic Scrambling | |
| Constellation | QPSK/16QAM @ 1.25/2.5MHz QPSK/16QAM/64QAM @ 6/7/8MHz | |
| FEC | 1/3, 2/3 @ 1.25/2.5MHz 1/2, 2/3, 3/4, 5/6, 7/8 @ 6/7/8MHz | |
| Carrier | 2K | |
| GUI | 1/8, 1/16 @ 1.25/2.5MHz 1/4, 1/8, 1/16, 1/32 @ 6/7/8MHz | |
| Video output level | 1~1.2Vp-p@75Ω | |
| Video output format | PAL/NTSC | |
| Video white bar amplitude | 650~720mV | |
| Video synchronous amplitude | 260~275mV | |
| Video amplitude-frequency characteristic dB | 0~4.8MHz | -0.5~1.5 |
| 5.5MHz | -4.0~1.5 | |
| Rx feed output voltage | DC10V~DC12V | |
| Rx feed output current | 800mA/CH (MAX) | |
| Audio output | Left/right channel, stereo | |
| RS232 control interface | Standard RS232 level, 9600, 8, N, 1 | |
| RS232 data interface | Standard RS232 level, support 1200~115200 | |
| Environment | ||
| Working temperature | -25°C~55°C | |
| Storage temperature | -40°C~70°C | |
| Appearance | ||
| Dimension | 420mm×260mm×44mm (1U case) | |
| Weight | 3.5kg | |
