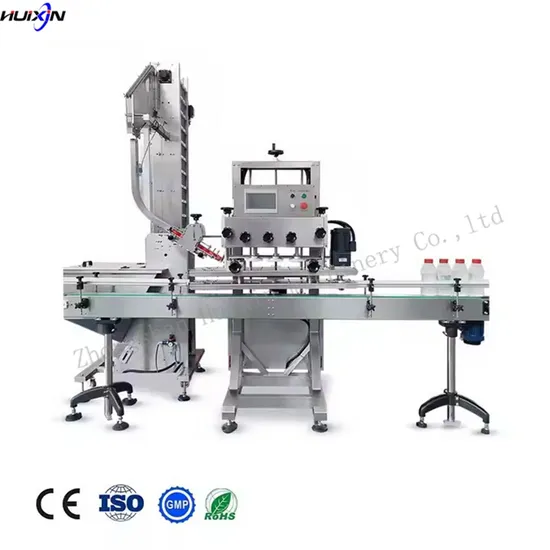

Full Auto Capping Machine, Screw The Cap, Loading Cap, Filling Capping Labeling Machine

Product Description

Full auto capping machine, screw the cap, loading cap, filling capping labeling machine
Product Description Introduction Cosmetic Screw Capping Machine With Cap Sorting adopts elaborate DIY design. By eliminating unnecessary complex and heavy machinery .it adopts suit type assembly. The maintenance and servicing can be completed without professional. when it is necessary to replace the product just make some simple adjustments, It can be immediately put online for production. Feature 1. Adopt flexible combination design, suitable for different sizes of bottles and caps.2. For different sizes of caps, it is not necessary to change the spare parts, just simple adjustment is ok.3. With cap locator, the position of the caps and pump will be the same.4. Easy operation and adjustment, low cost for maintainance.5. Designed according to GMP requirement.

Parameter of cap feeder
Specification	Cap feeder
Working method	LM-XG: The cap is lifted to the corresponding track by the conveyor belt cover.
	LM-GXG: The cap is lifted to the corresponding track by the vibrating plate
Capacity	LM-XG: 40 bottles per minute (Need to be tested according to the size and shape of the cap)
	LM-GXG: 35-45 bottles per minute (Need to be tested according to the size and shape of the cap)
Characteristic	Not bottle no working, and the electric eye detection is efficient and stable.
Control	The height is adjustable to fit the top cover of the bottle at different heights. The adjustment mechanism is equipped with a ruler or calculator to make the adjustment visible.

Parameter of capping machine
Specification	Function, characteristics, parameters
Machine	Capping machine
Working method	The pattern of the two symmetrical lid wheel sets is rotated to close the lid.
Capacity	50 bottles per minute (Need to be tested according to the size and shape of the cap)
Characteristic	The clip capping machine overcomes the drawbacks of a conventional capping machine with a cap and a capping head.
Control	The height of the cap wheel is adjustable to fit the bottle caps of different heights and shapes. The adjustment mechanism is equipped with a ruler or calculator to make the adjustment visible
Structure	Beautiful appearance, reasonable structure, easy maintenance and disassembly, no special tools required
Cap diameter	10-60mm
Warranty	All parts are guaranteed for one year from the date of arrival (except for consumables)
Power	220V 1.5kw
Weight	150kg
